Insertion and Extraction Tools

Insertion and Extraction Tools


INGUN tools make an important contribution to secure, precise testing. Only with optimally installed receptacles and test probes, can reliable testing be guaranteed. Depending on the receptacle a

INGUN tools make an importantcontribution to secure, precise testing. Only with optimally installed
receptacles and test probes, can reliable testing be guaranteed. Depending on the receptacle and test probe to be installed,
various tools and bits are available.

Receptacles are pressed into the probe plate, either up to the collar stop or by pressing the press-ring to allow for variable

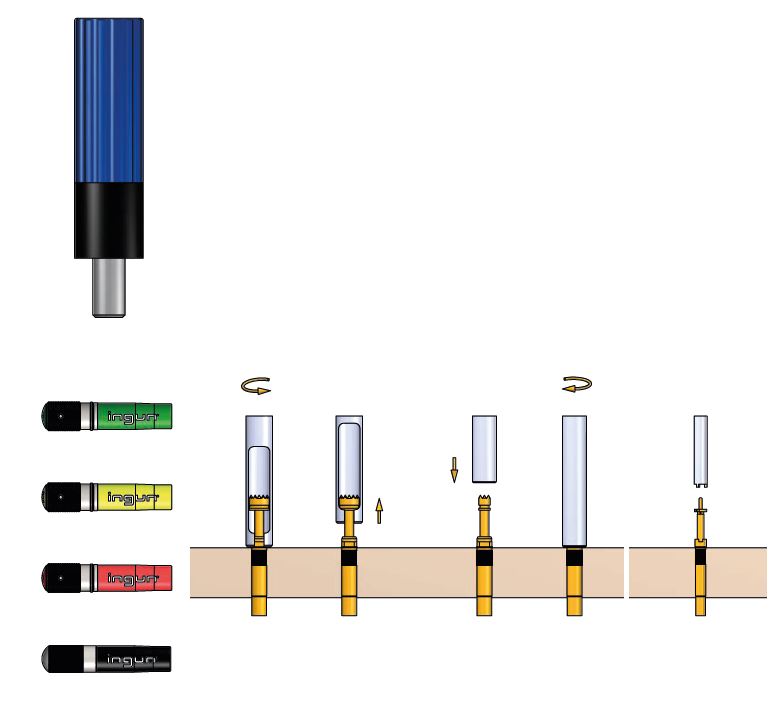

adjustment of the installation height. Depending on their design, spring-loaded test probes are pressed into or screwed
into the receptacle using a suitable tool. There are optimally matched bit inserts, according to tip style and diameter of
the probe.

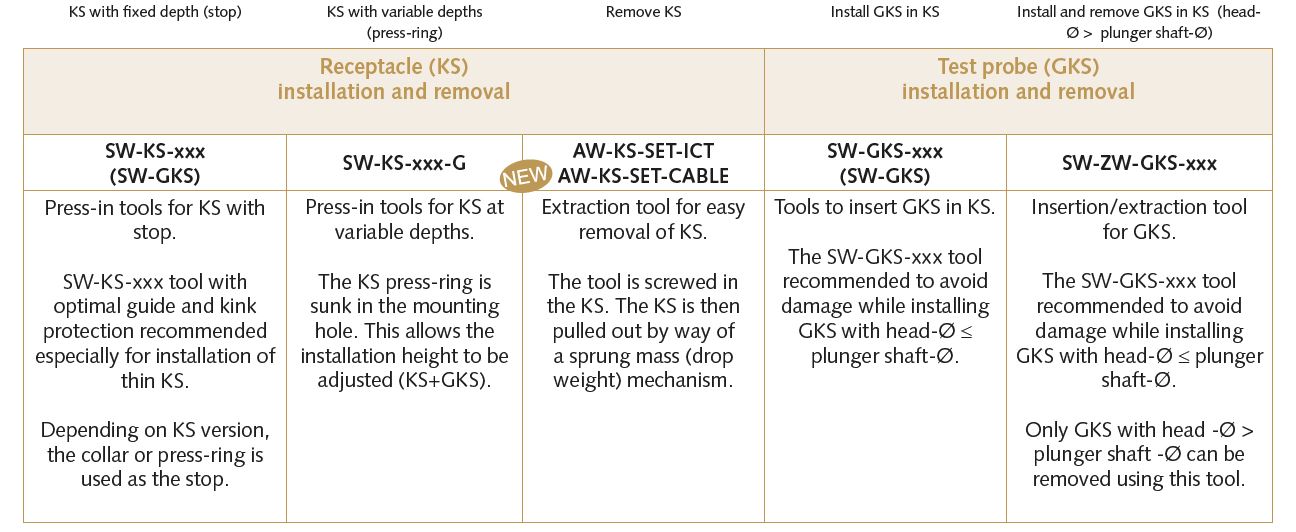

Tools

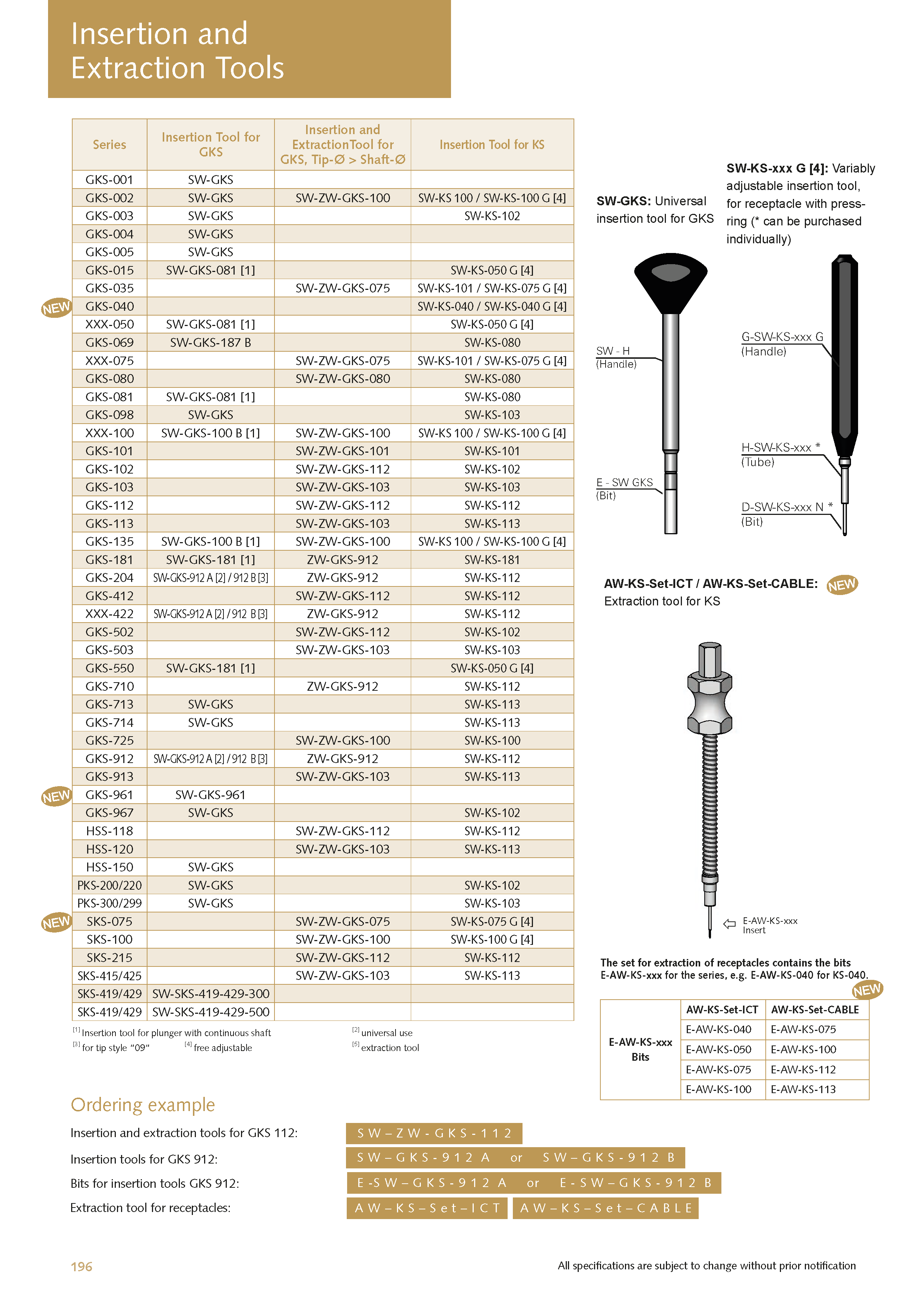

To press in receptacles and spring-loaded test probes (GKS)

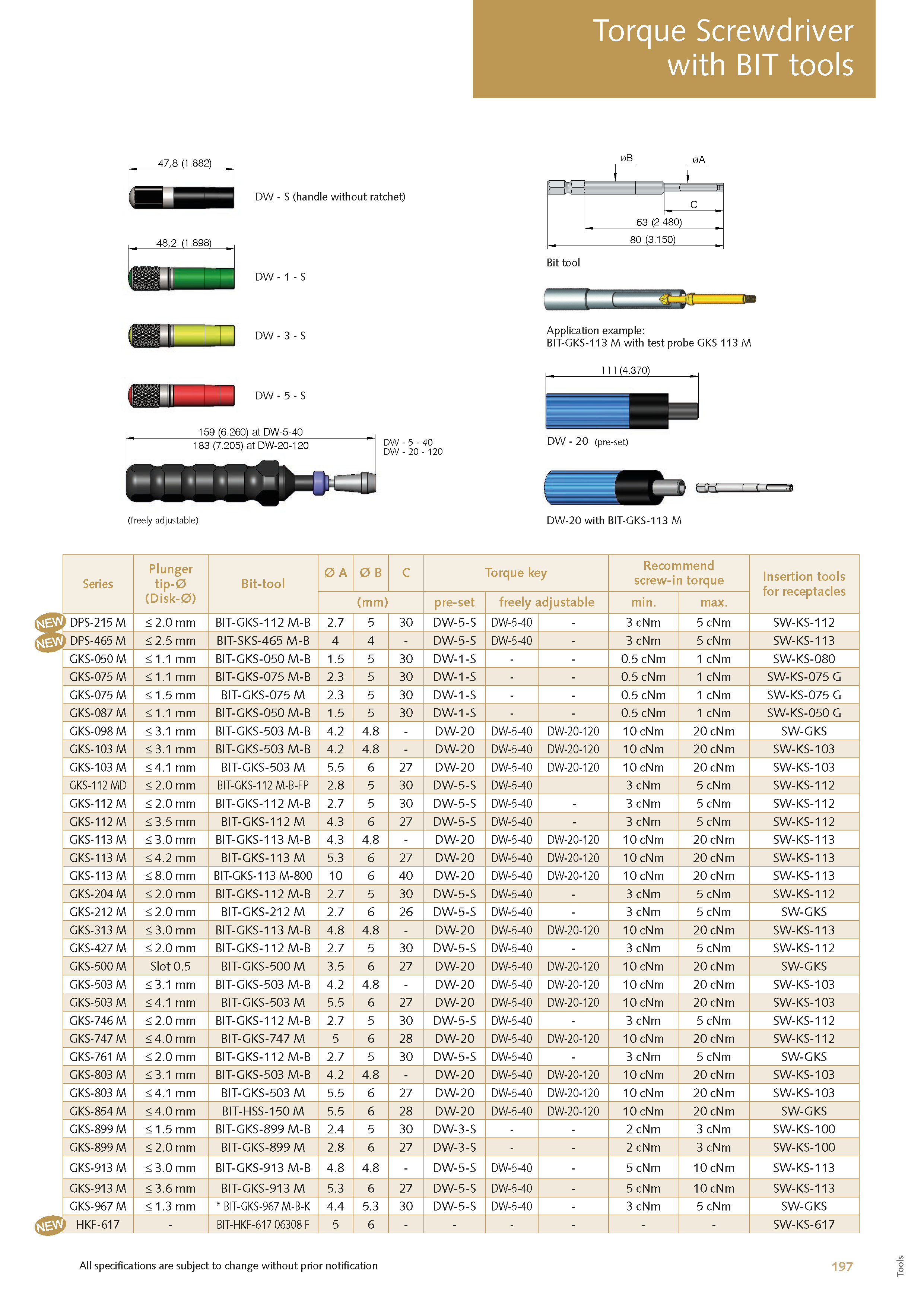

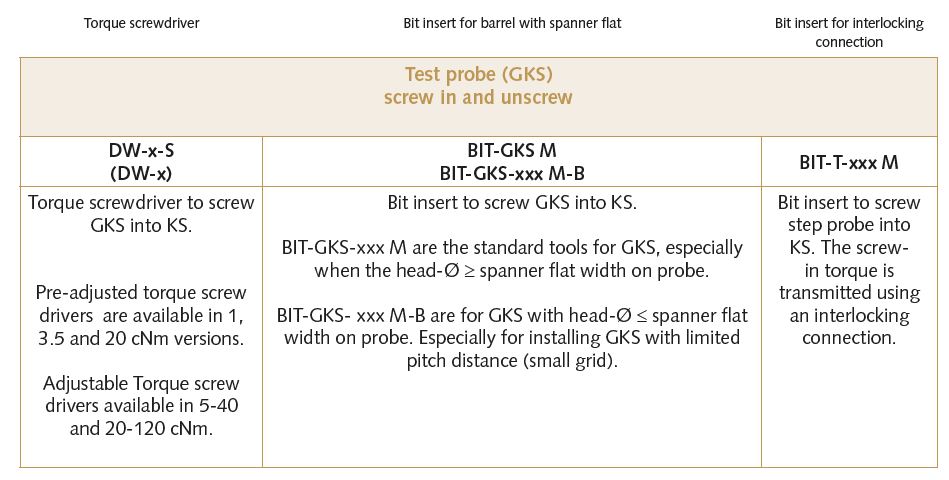

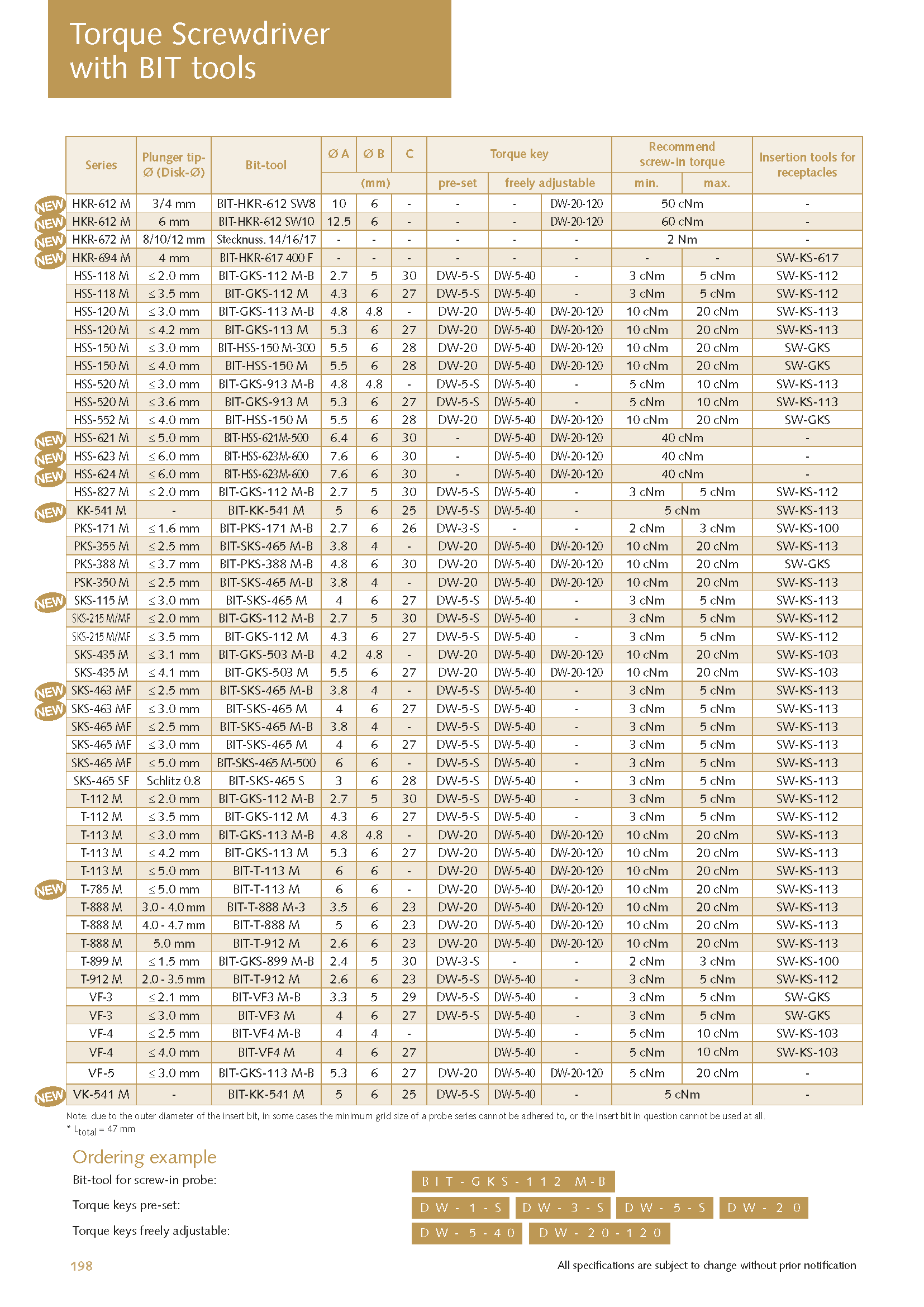

Screw-in Tools for Test Probes
