Electrical Data

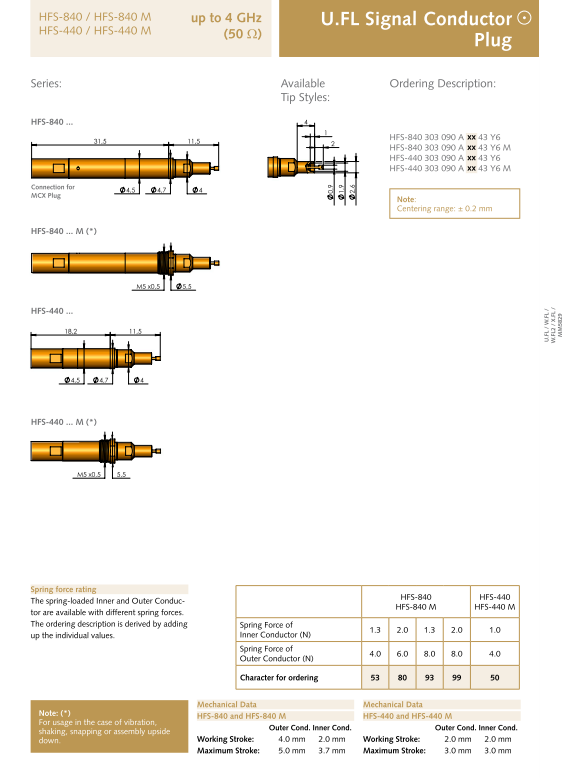

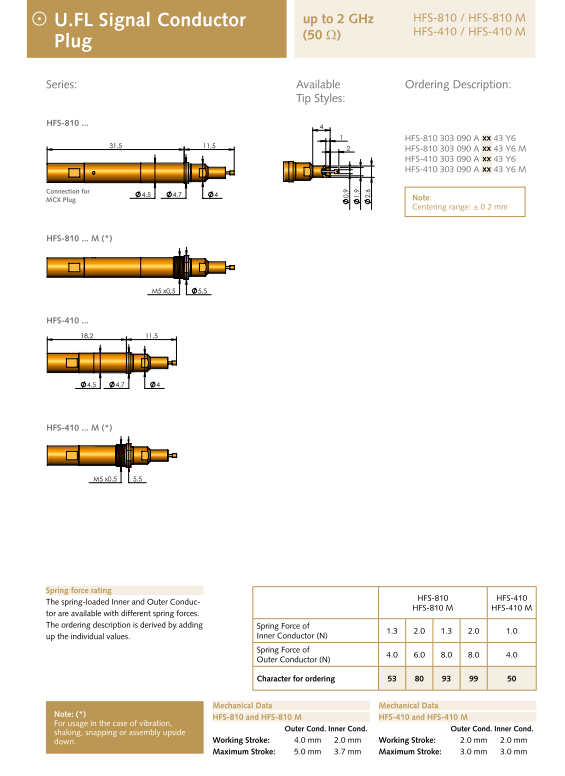

HFS-810 / 810 M                             HFS-840 / 840 M
HFS-410 / 410 M                            HFS-440 / 440 M

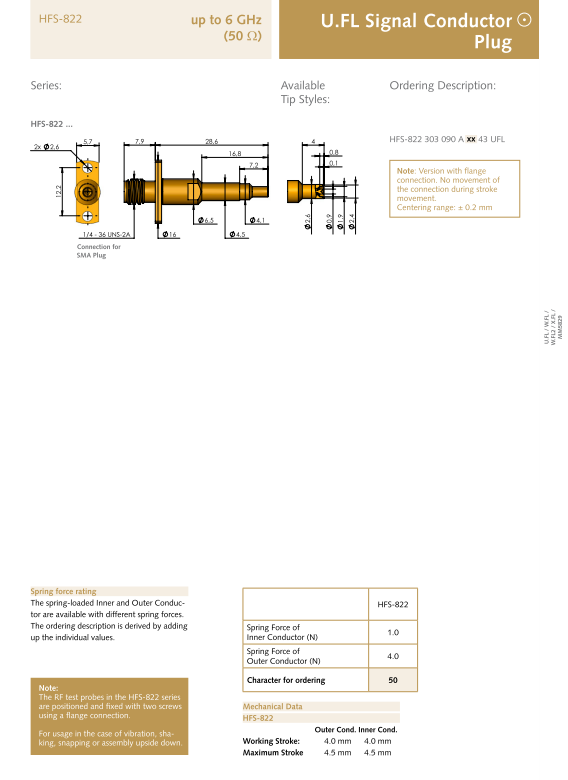

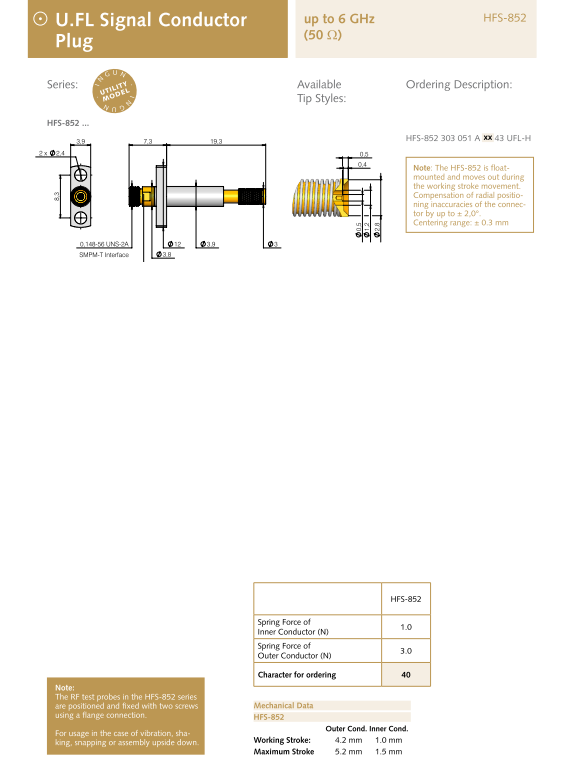

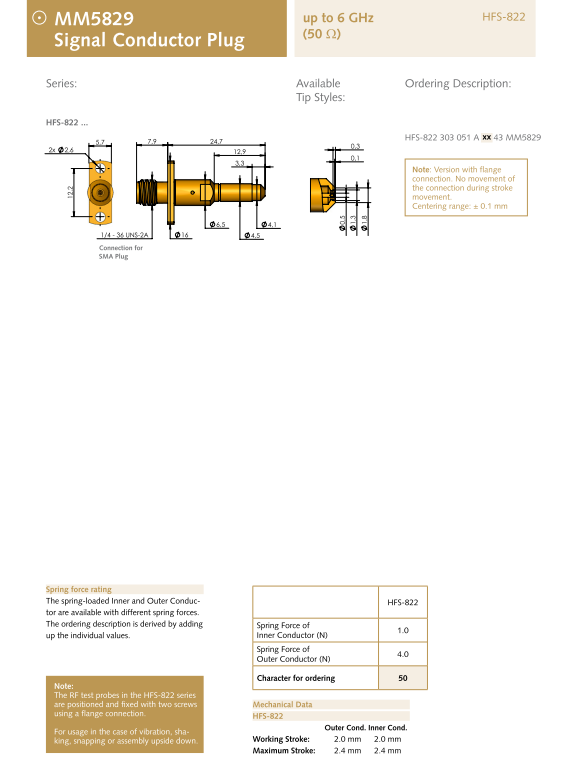

HFS-822                                          HFS-852

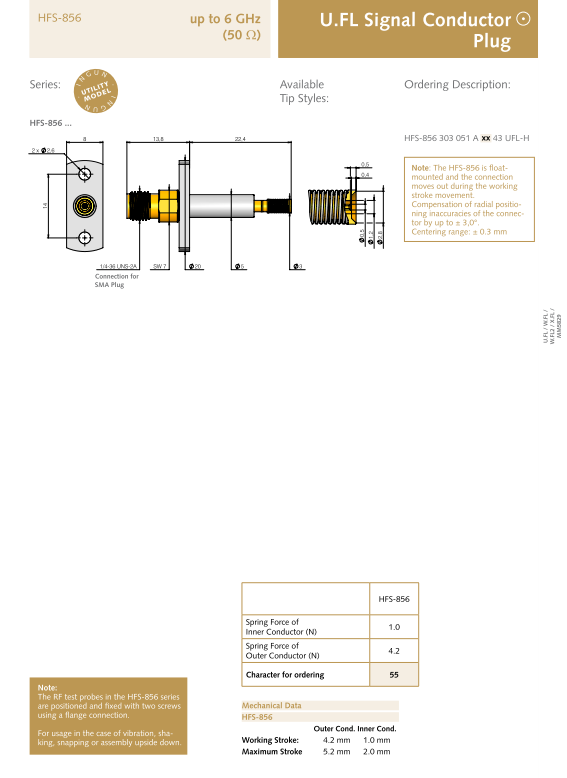

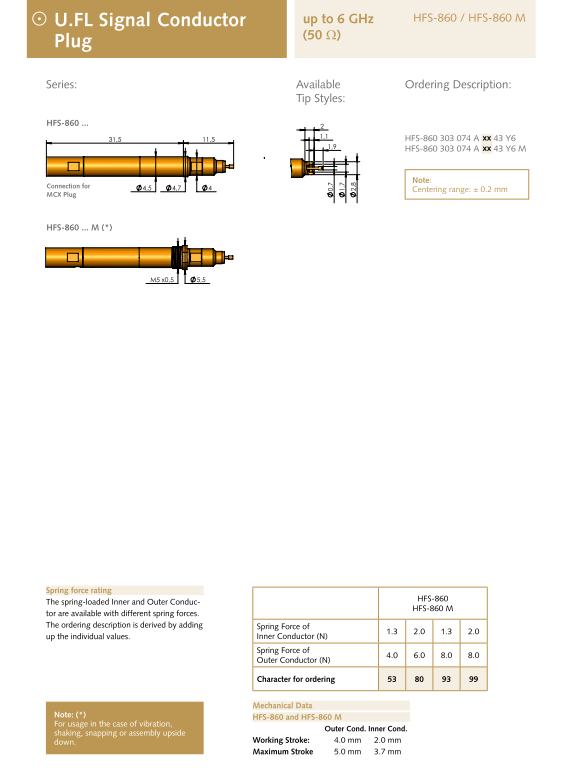

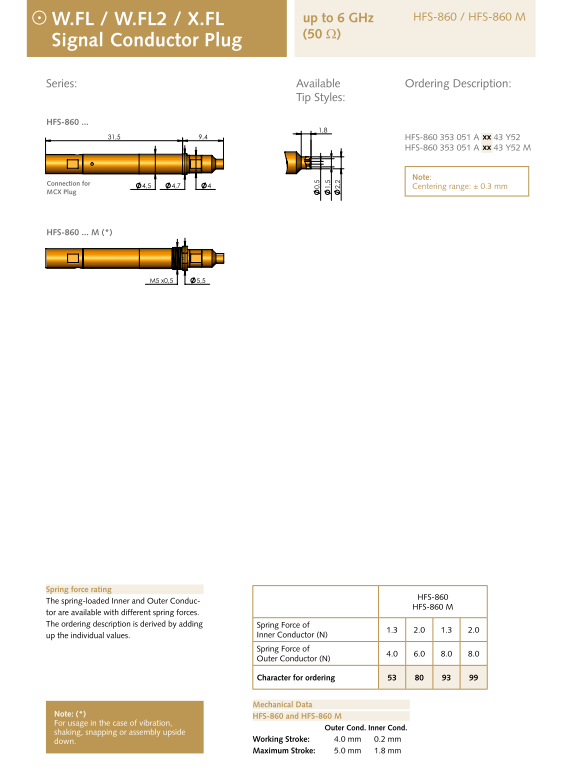

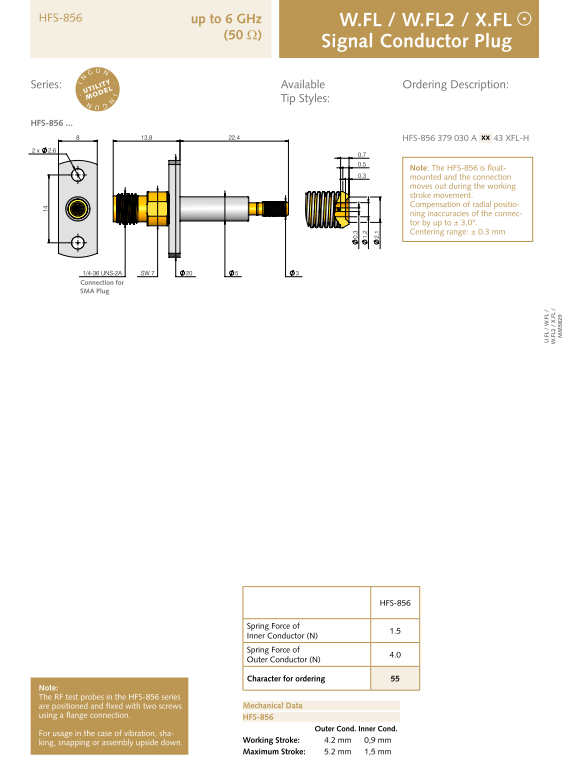

HFS-856                                          HFS-860 / 860 M
Frequency Range with HFS-810/410:   up to 2 GHz
Frequency Range with HFS-840/440:        up to 4 GHz
Frequency Range with HFS-822/852:        up to 6 GHz
Frequency Range with HFS-856/860:        up to 6 GHz
Current Rating Outer Conductor:  8–10 A
Current Rating Inner Conductor:  2–3 A
Ri typical Inner Conductor:  < 10 mΩ
Impedance Test Probe:    50 Ω
Impedance Cable:   50 Ω
