Product Name:

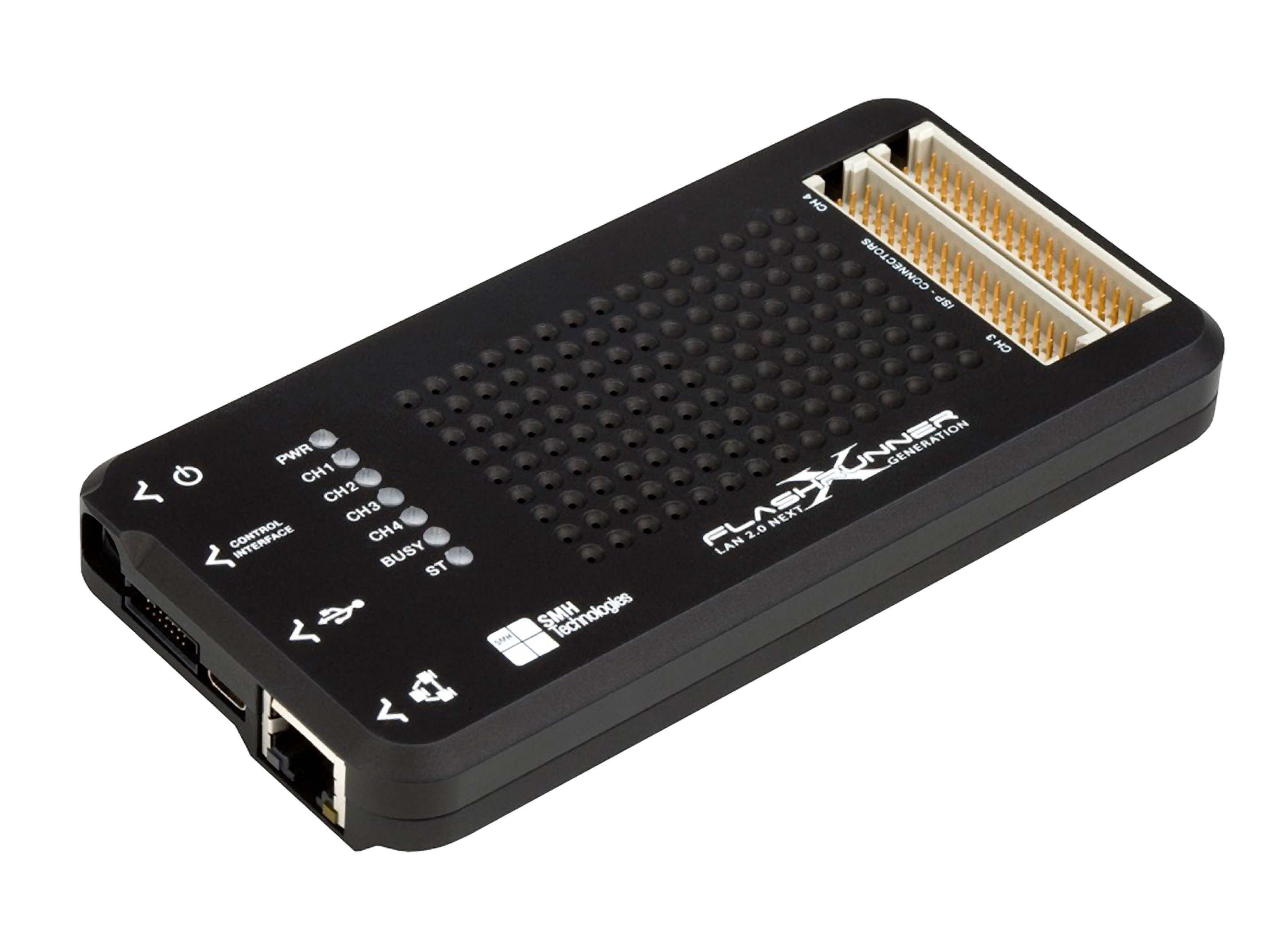

FlashRunner 2.0: LAN 2.0 NEXT GENERATION In-System Programming

FlashRunner LAN 2.0 NXG is a powerful and flexible in-system programming solution designed to streamline your production processes.

Key Features:

• Scalable Configuration: Choose from 1 to 4 independent and parallel channels, easily upgradeable online. In this way, the cost of the solution will adjust to the production needs, optimizing the programmer’s efficiency also in respect of the economic investment.
• Compact Design: Sleek and compact, perfect for integration into your fixture and Test System.

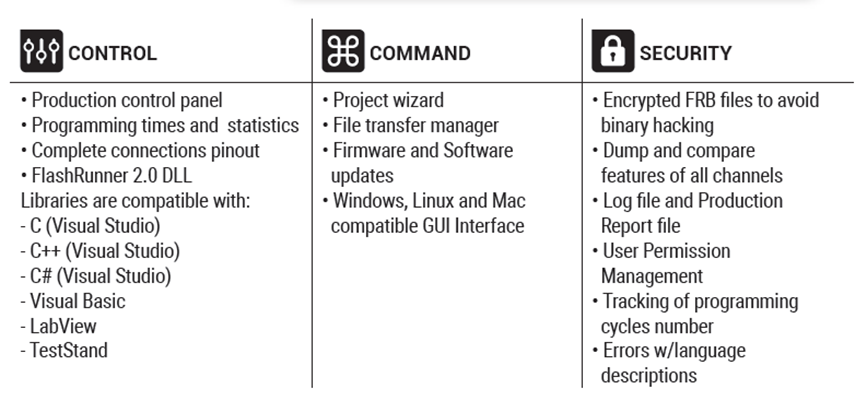

• Robust Software:
• FR LAN 2.0 NXG WorkBench: the new user-friendly Graphical User Interface (Windows and Linux compatible)
  • Based on Embedded Linux operating system
  • Interface Library to control the programmer directly from user’s test applications
  • Serial numbering
  • Optional customer binary file cryptography to ensure antipiracy protection
  • Log file and Production Report file
  • ISP channels expansion activation license
  • Memory dump and compare functions
  • Easy integration with C/C++ DLL interface libraries
  • ASCII-based commands

Hardware Flexibility:

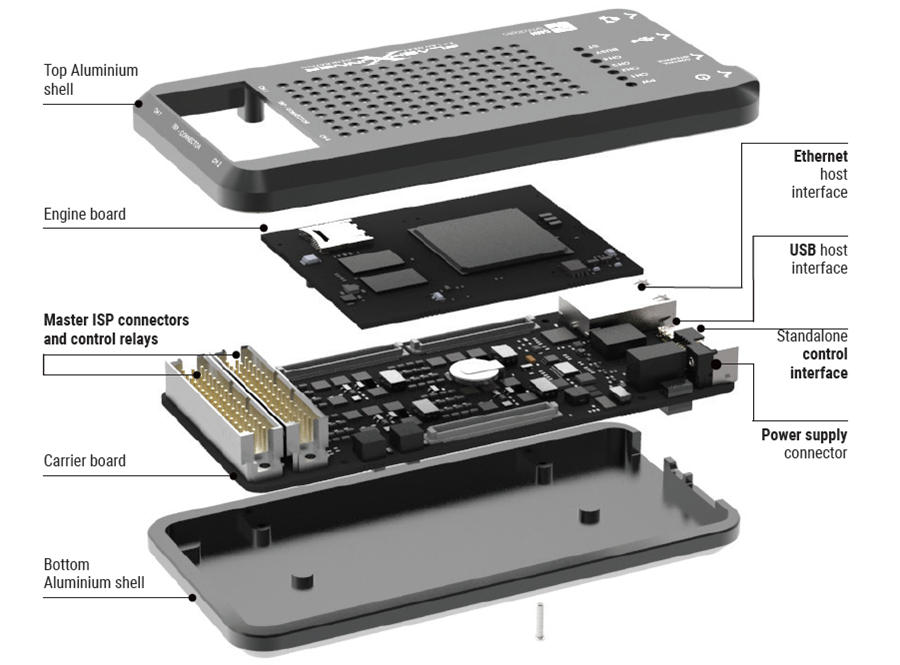

FlashRunner LAN2.0 NXG is available in two different aluminium cases:

• CC - Closed Case (two aluminium shells completely cover the programmer)
• OF - Open Frame (two aluminium layers include the programmer and reduce the overall dimensions).

The main difference between CC - Closed Case and OF - Open Frame is dimensions.

• CC - Closed Case: 142xh70x17.6mm.
• OF - Open Frame: 142xh60x17.6mm.

Why Choose FlashRunner 2.0 NXG?

• Easy fixture integration: can be easily integrated inside the fixture.
• High-Speed Programming: Accelerate your production cycles with lightning-fast programming speeds.
• Industrial-Strength Design: Built to withstand harsh industrial environments.
• Universal Compatibility: Supports a wide range of devices and protocols.
• Scalable Configuration: Customize your solution with 1 to 4 independent and parallel channels.
• User-Friendly Software: Intuitive interface for easy operation and management.
• Robust Security: Protect your intellectual property with advanced security features.

Upgrade your production process with FlashRunner 2.0 NXG.

Contact us today for more information.
