N / FME / 7/16

N / FME / 7/16


HFS-810 / 810 M HFS-840 / 840 M HFS-410 / 410 M HFS-440 / 440 M HFS-860 / 860 M HFS-864

Electrical Data
HFS-810 / 810 M         HFS-840 / 840 M
HFS-410 / 410 M         HFS-440 / 440 M
HFS-860 / 860 M         HFS-864
Frequency Range with HFS-810/410:   up to 2 GHz

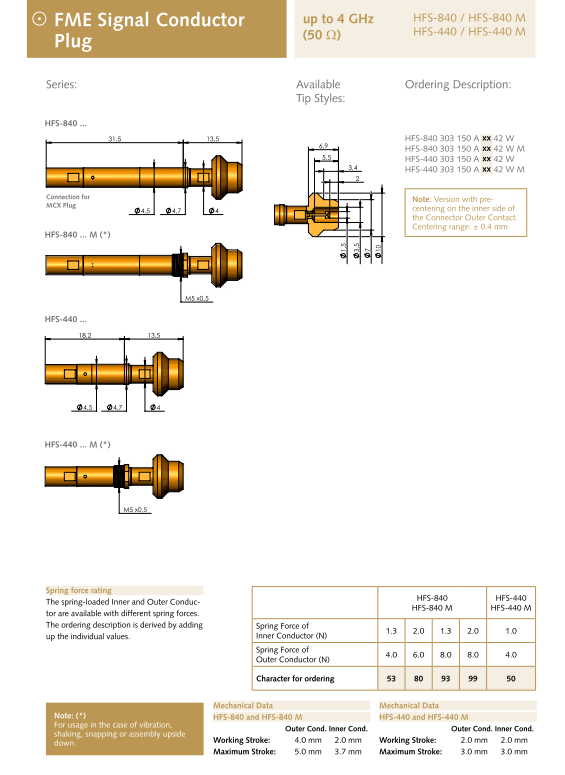

Frequency Range with HFS-840/440:   up to 4 GHz
Frequency Range with HFS-860:                up to 6 GHz
Frequency Range with HFS-864:             up to 7.5 GHz
Current Rating Outer Conductor:  8–10 A
Current Rating Inner Conductor:  2–3 A
Ri typical Inner Conductor:   < 10 mΩ
Impedance Test Probe:    50 Ω
Impedance Cable:   50 Ω
