E.Q.O Mat

_Ecological Qualified Octopus Mat_

E.Q.Omat special cleaner for test probes

E.Q.O mat is cleaner that removes the contamination such as flux and oxide films stuck to the tip of the test probe easily and quickly. With the structure and the thinness constructed by considering the usability, it is an important tool in order to use probe with long life expectancy.

Application

By pressing E.Q.O mat against the tip of the probe, clean contamination such as the flux and oxide film stuck to the tip of probe, then get good connection. We recommend the cleaning before or after the print circuit board is inspected.　

Effect

By regularly maintenance by E.Q.O mat.

*Probe keeps long life expectancy.

*Cost cut for maintenance.

*Decrease connection failure and test pass ratio up.

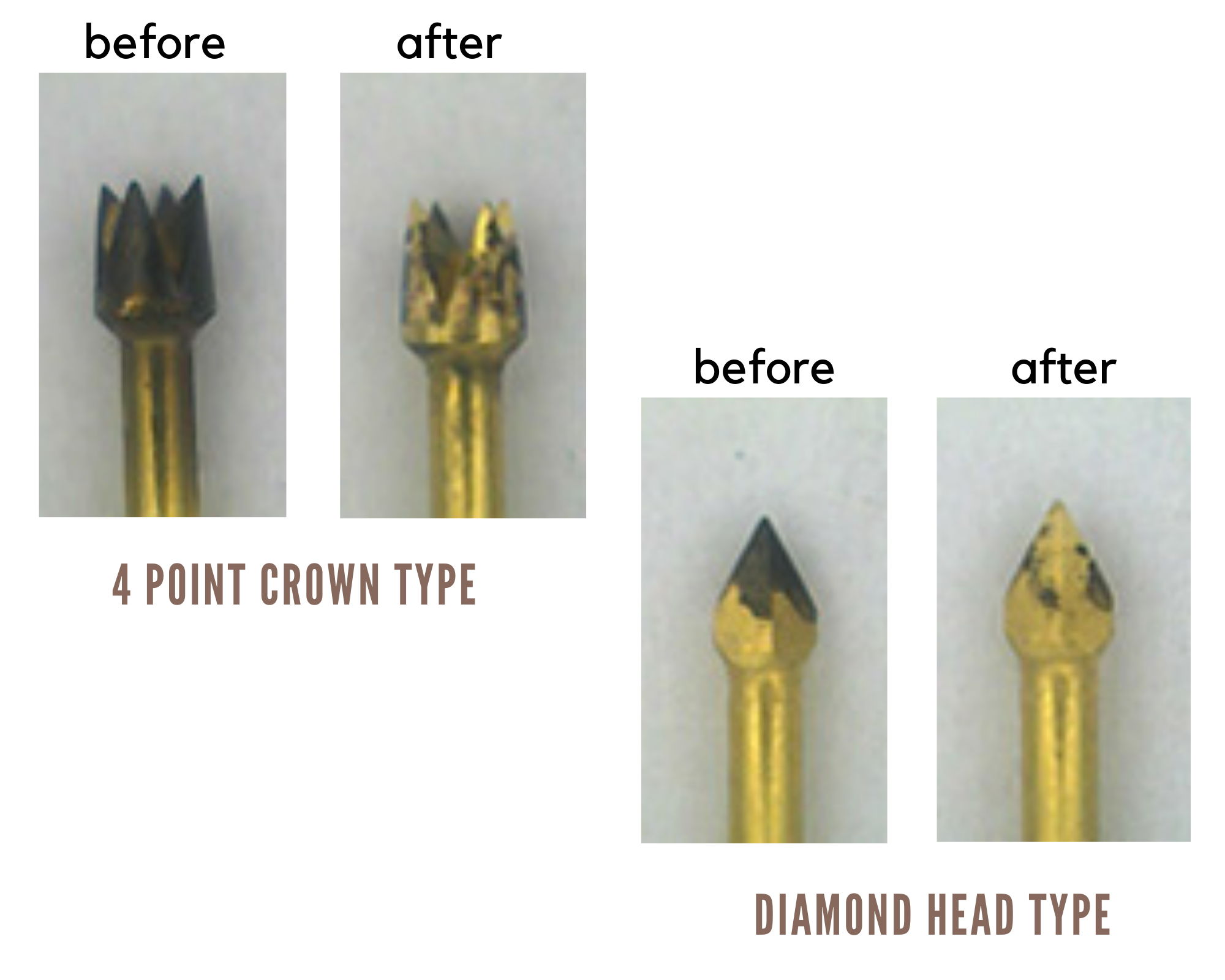

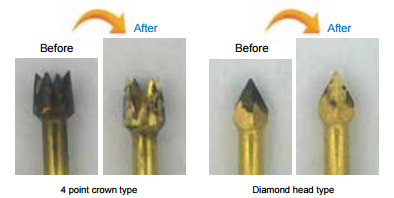

*It is available for crown type tip also.

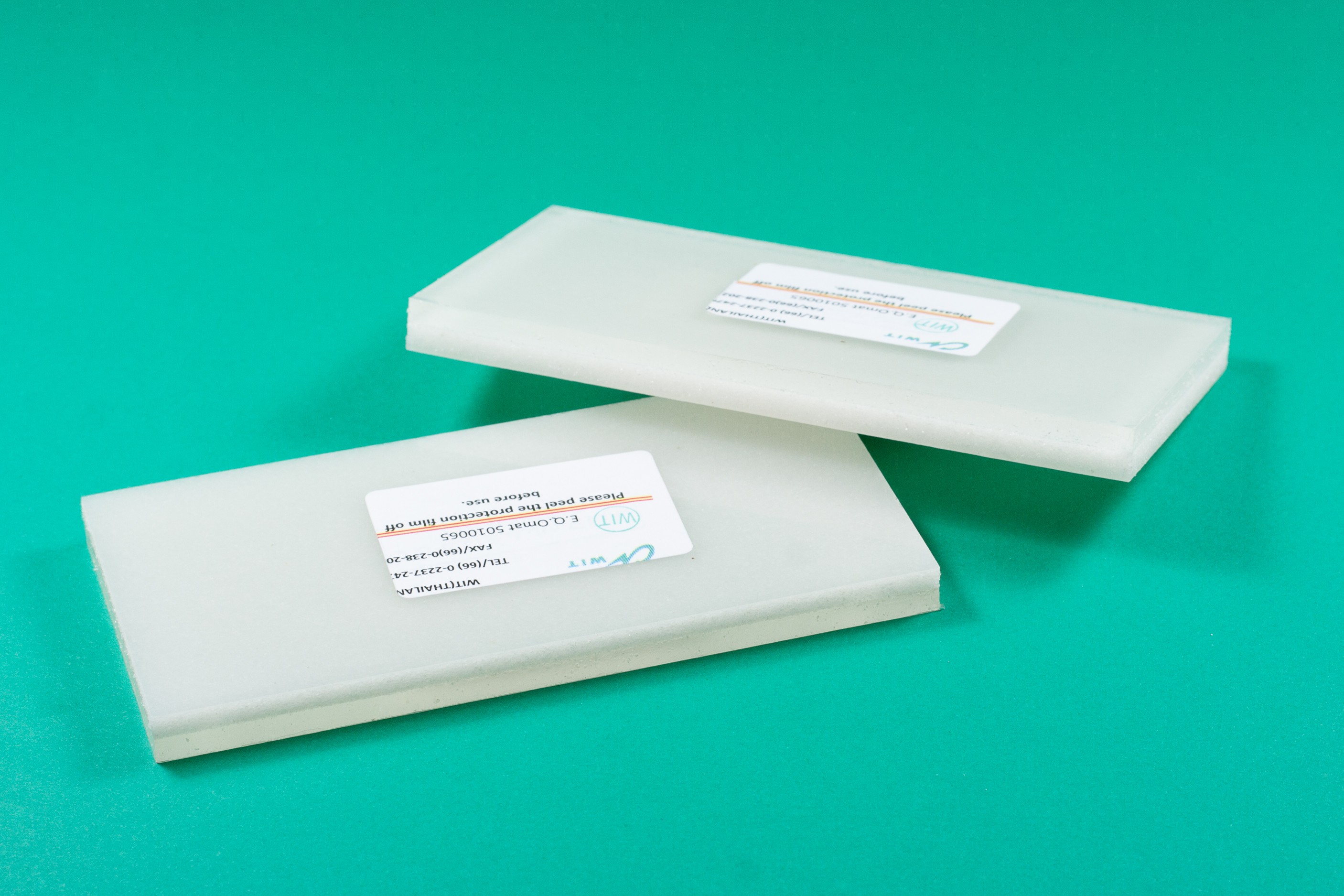

Specifications

EQOmat comes in two sizes. It is sold in sets of 5 and sets of 10.

① Dimensions: 5 cm (L) x 5 cm (W) x 6 mm (T); Model No: E.Q.Omat_505065, set of 5
② Dimensions: 5 cm (L) x 5 cm (W) x 6 mm (T); Model No: E.Q.Omat_5050610, set of 10
③ Dimensions: 5 cm (L) x 10 cm (W) x 6 mm (T); Model No: E.Q.Omat_5010065, set of 5

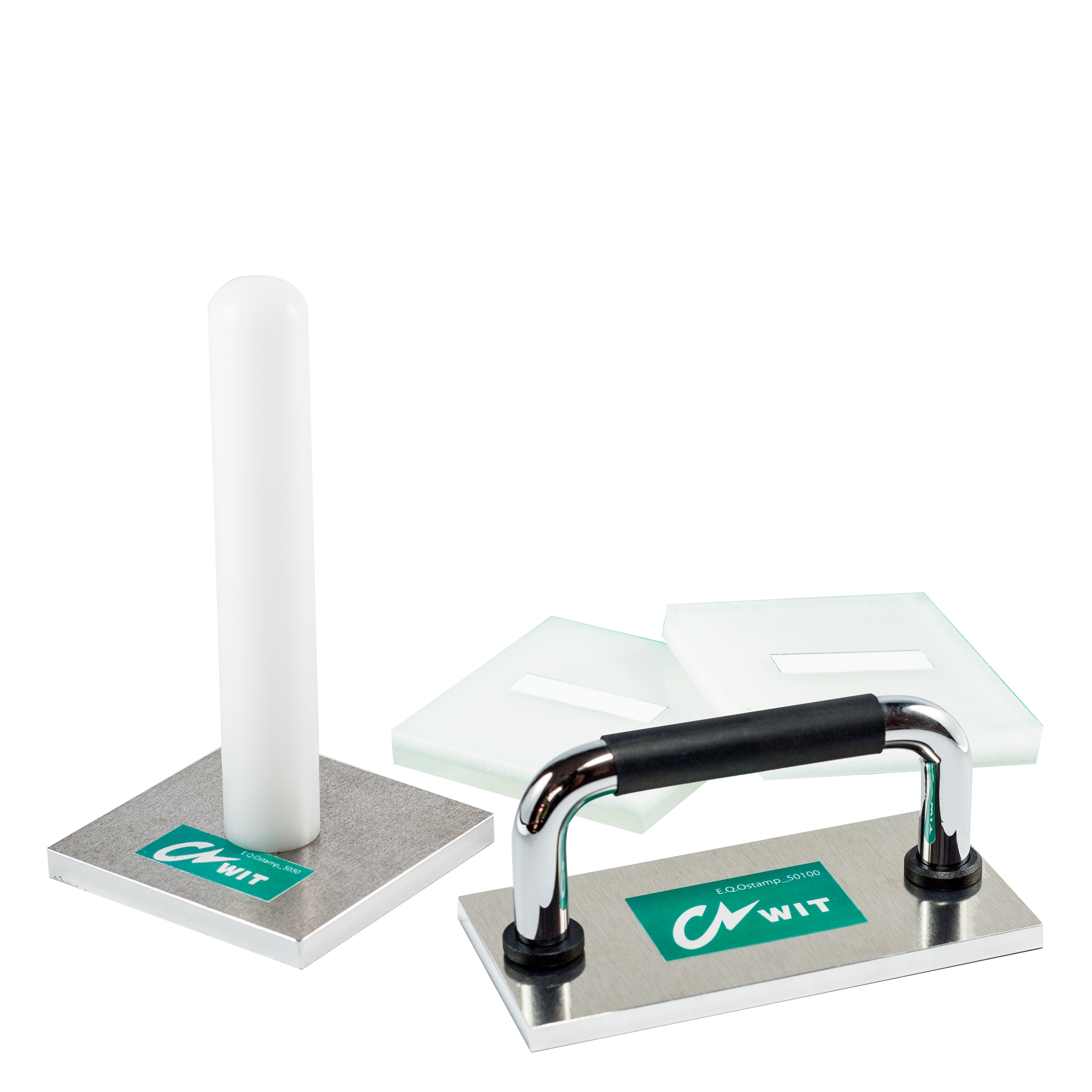

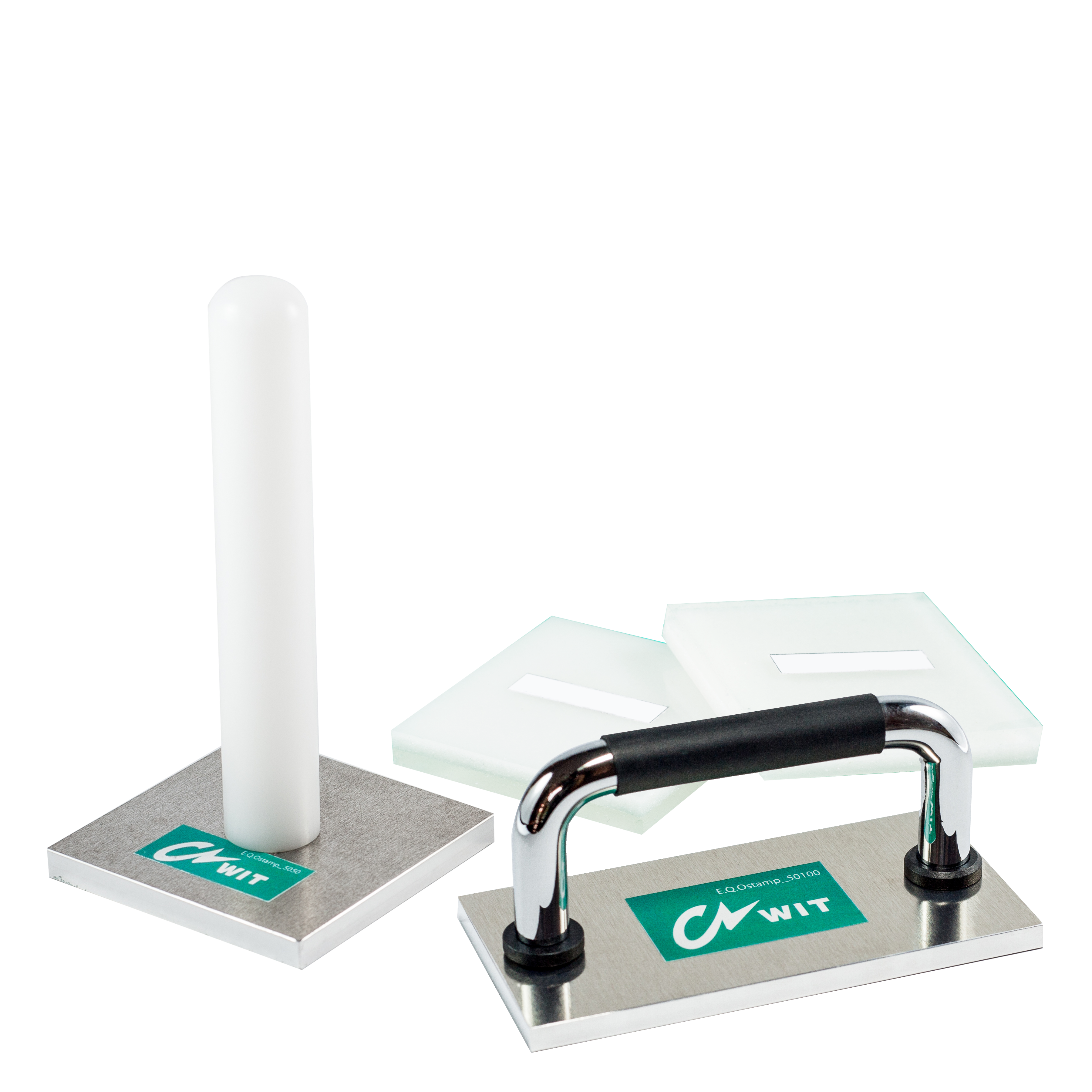

Options / Special E.Q.O stamp

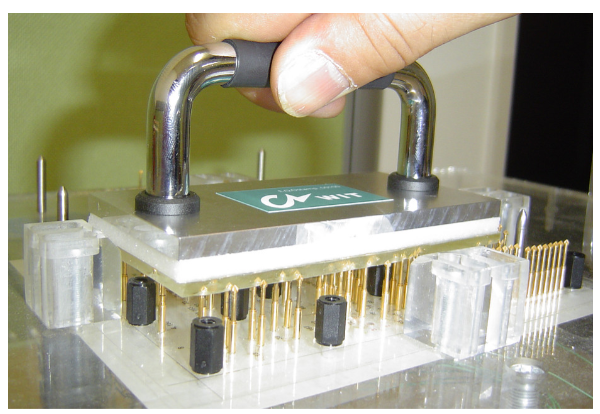

Using the EQO stamp adds pressure evenly to the test probe, and can remove dirt uniformly.

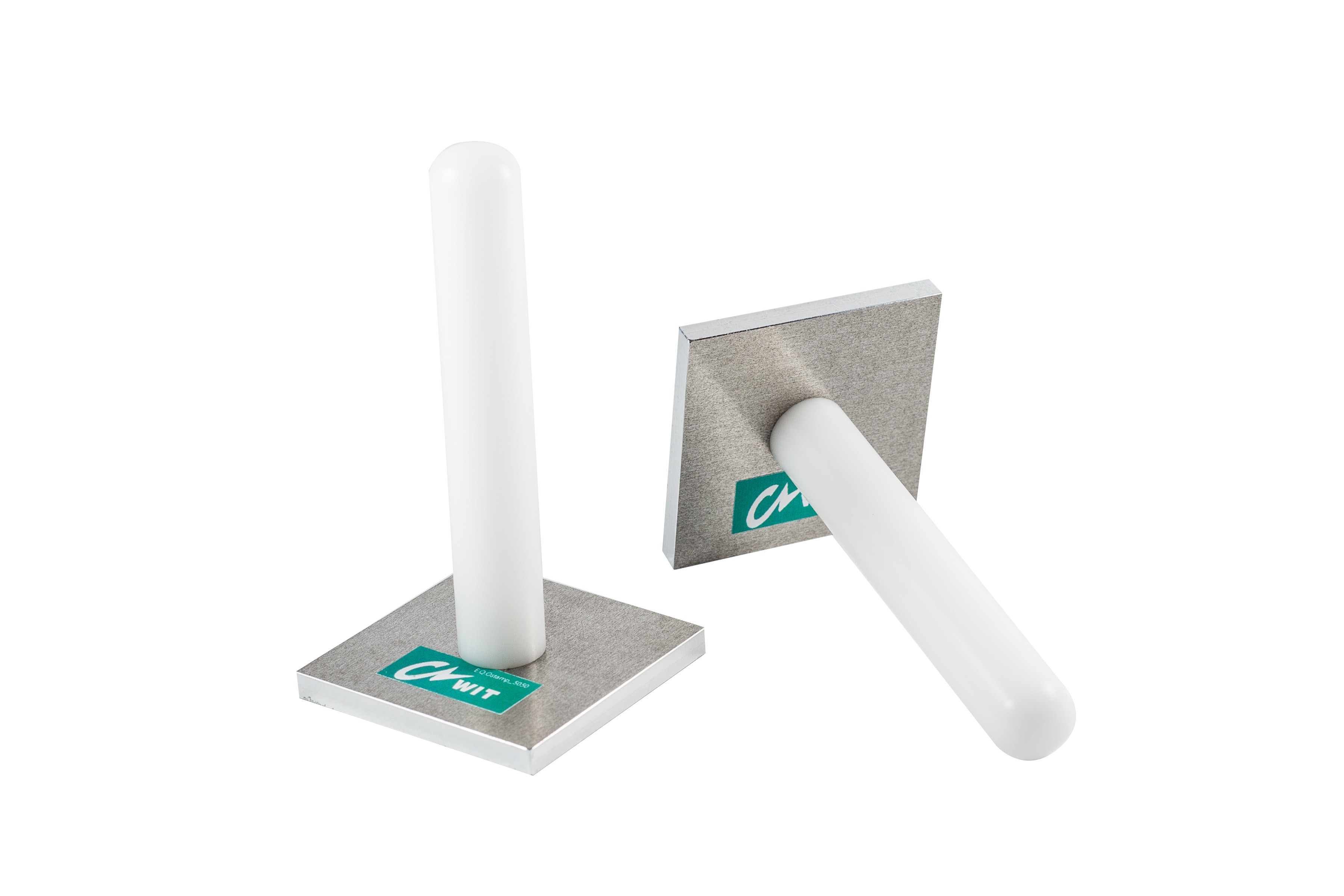

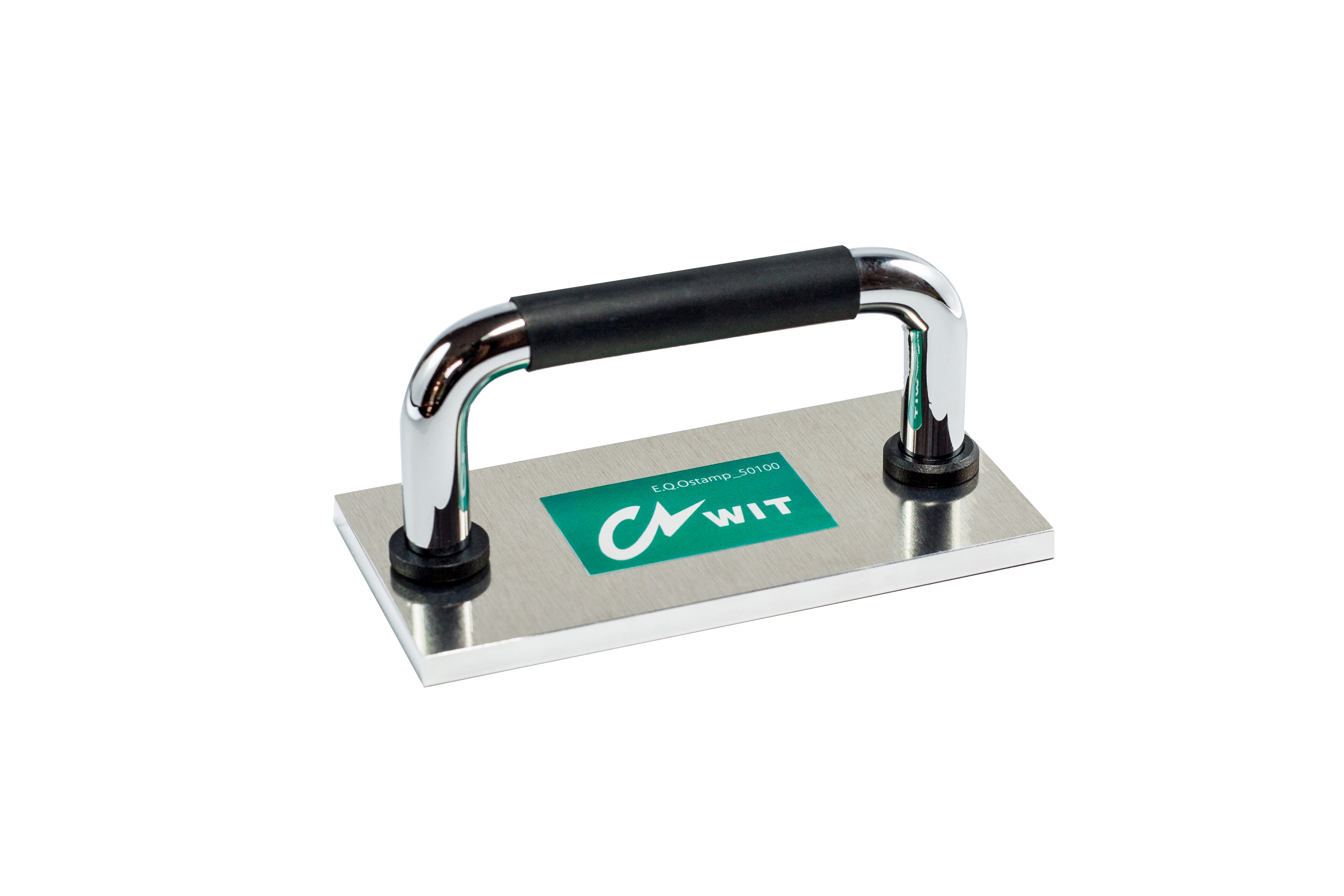

Use of EQO stamp is recommended from the standpoint of safety. Two types, vertical and horizontal, are available.
