EAGLE MTS 180
EAGLE MTS 180
Our Eagle at 5500 N can be equipped with up to 3456 analog and hybrid in-circuit test pins
DETAILS

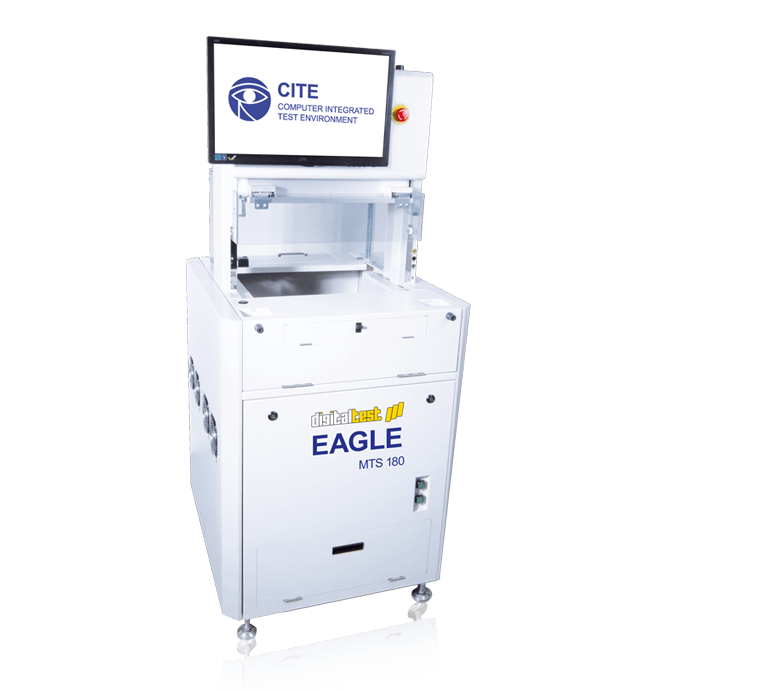

The Eagle MTS 180 is our most economical solution for high-volume production. The in-circuit tester is equipped with a press, so that you can dispense with expensive vacuum fixtures. The pneumatic press allows you to develop even highly complex fixtures at minimal cost.
Our Eagle at 5500 N can be equipped with up to 3456 analog and hybrid in-circuit test pins, making it the ideal test system for EMS service providers and high-volume production. In addition, the test system can be equipped with functional modules for greater fault coverage or configured as a function tester.
Features
| Maximum no. of networks | 3456 |
| Maximum board size (mm) | 430 x 310 |
| Interface | Pneumatic press |
| System size (LxWxD) | 1000 x 1700 x 860 |
| Format | Pneumatic press, economical fixture solutions |
| Possible versions | analog, hybrid & Lambda edition |
| Maximum fixture pin number |
3456 (at 5500 N) |
Software
Our range of PCB test software covers your requirements in the entire production process: from preparation of CAD files to test program generation and quality assurance.
We offer software for non-destructive reconstruction of CAD data, professional CAD/CAM software, the system software for our test systems, as well as paperless repair software. Except for our CITE system and Digitizer software, you can use our software packages for any test system.
Analog Measurement Unit – heart of the system

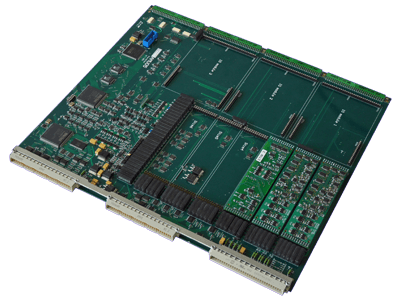

The AMU05 (Analog Measurement Unit 05) is the core of all our test systems. It ensures that all the measurements are performed faster, more accurately and with even greater stability.
Improves the quality of your test programs
When it comes to the test coverage of a program in the analog ICT, the question is not only whether there is a test for every component and if it was performed, but also whether the test would in fact recognize a fault.
Switching matrix

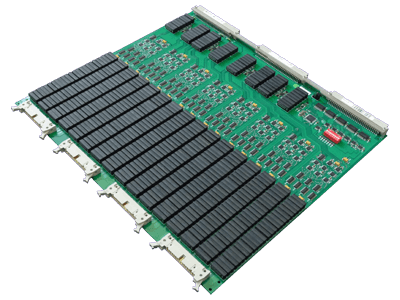

The Analog Signal Switch Unit serves as a 6-bus interconnect for 128 pins each to the Analog Measurement Unit (AMU05) for the In-Circuit test.

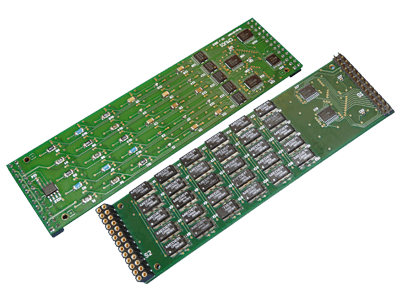

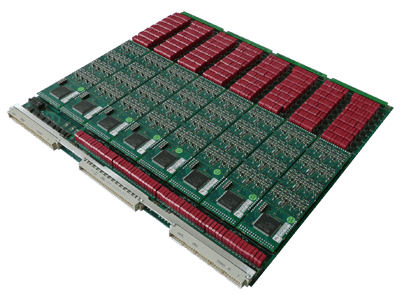

128-Pin hybrid driver/sensor module
The HYB04 enables comprehensive analog as well as digital driver- and sensor-functions. It has 128 non-multiplexed hybrid pins per module.

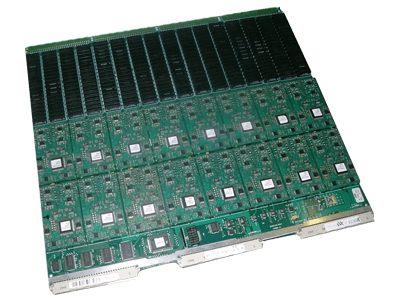

64-pin hybrid driver/sensor module
Our HYB03 enables comprehensive analog as well as digital driver- and sensor-functions. It has 64 non-multiplexed hybrid pins per module.
