Electrical Data

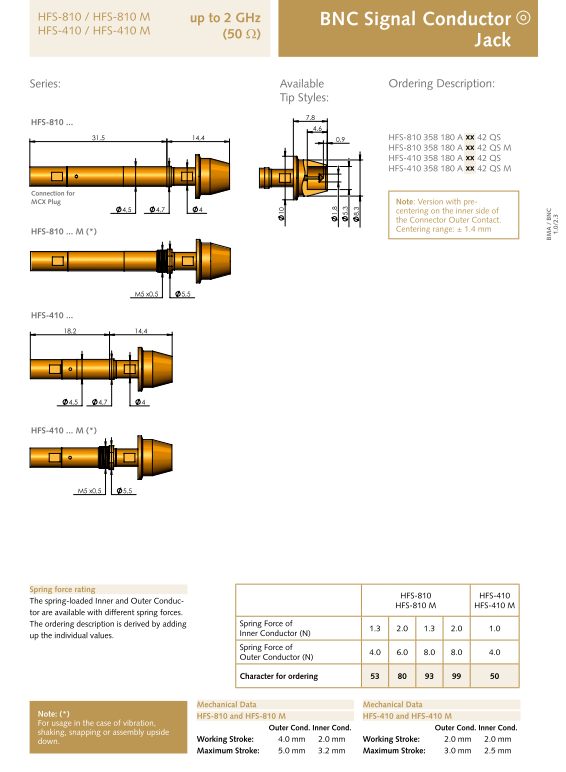

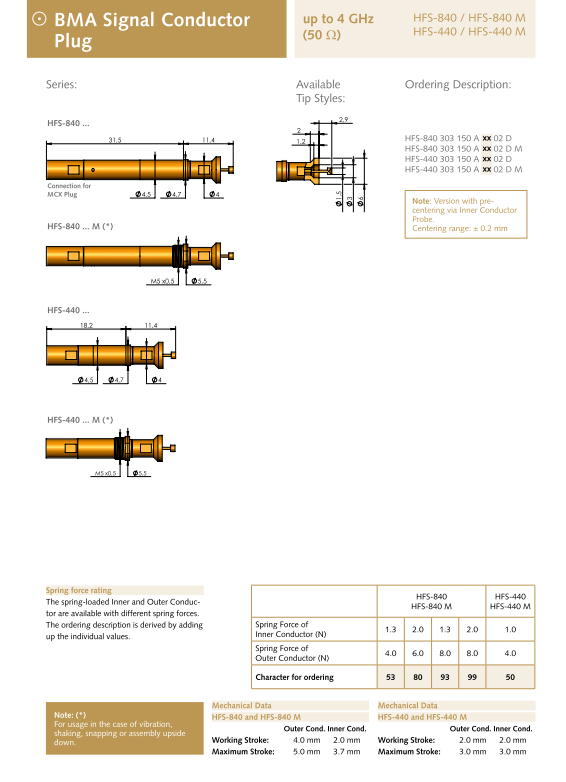

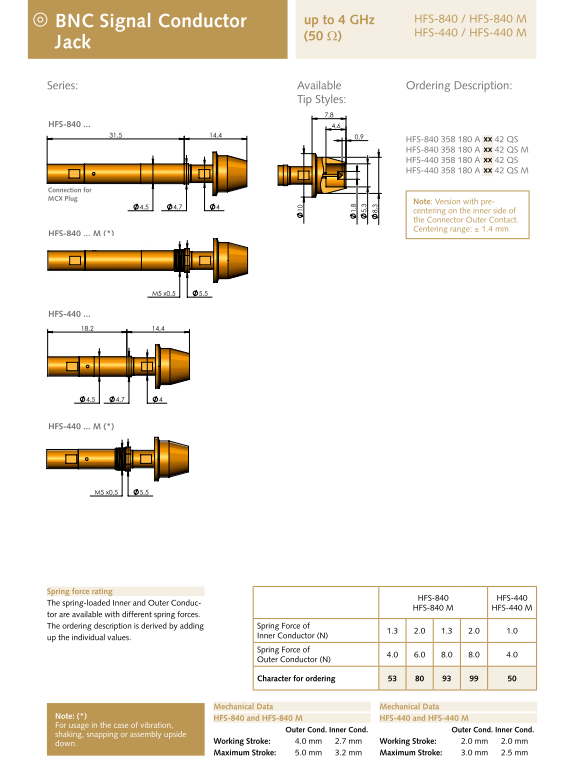

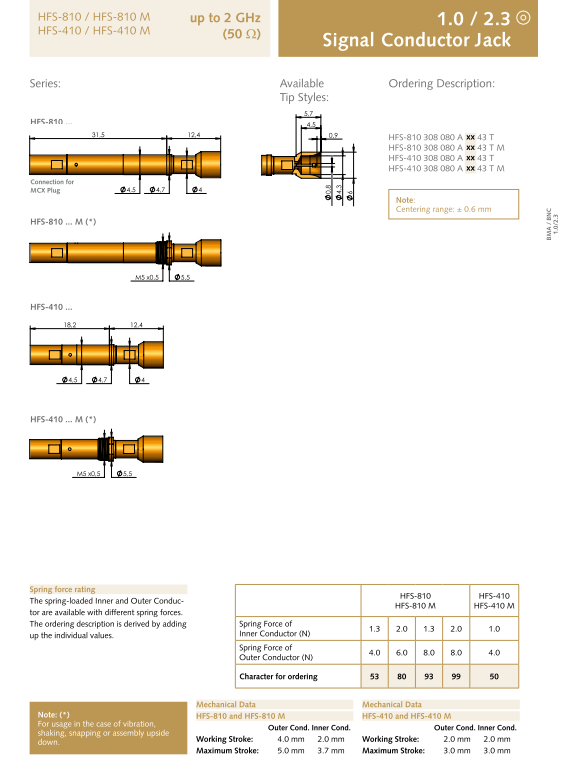

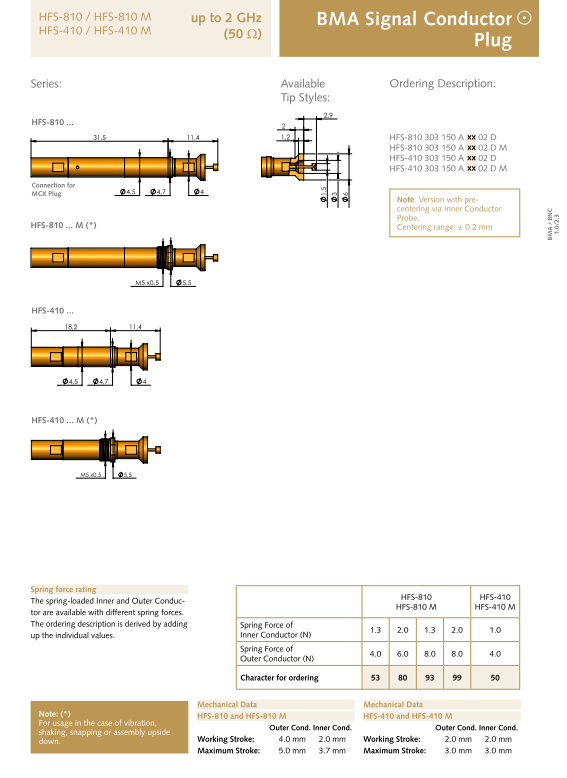

HFS-810 / 810 M         HFS-840 / 840 M
HFS-410 / 410 M         HFS-440 / 440 M
HFS-860 / 860 M         HFS-865 / 822
Frequency Range with HFS-810/410:   up to 2 GHz
Frequency Range with HFS-840/440:        up to 4 GHz
Current Rating Outer Conductor:  8–10 A
Current Rating Inner Conductor:  2–3 A
Ri typical Inner Conductor:   < 10 mΩ
Impedance Test Probe:    50 Ω
Impedance Cable:   50 Ω
