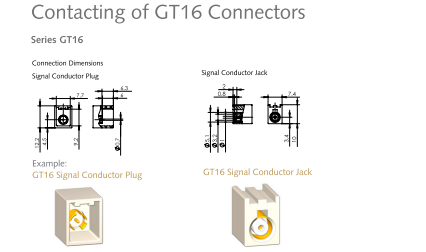

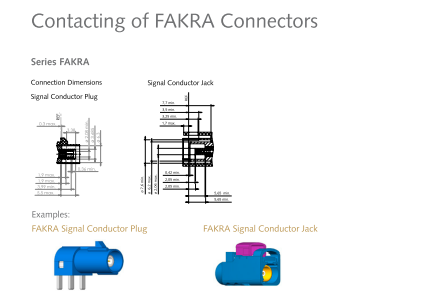

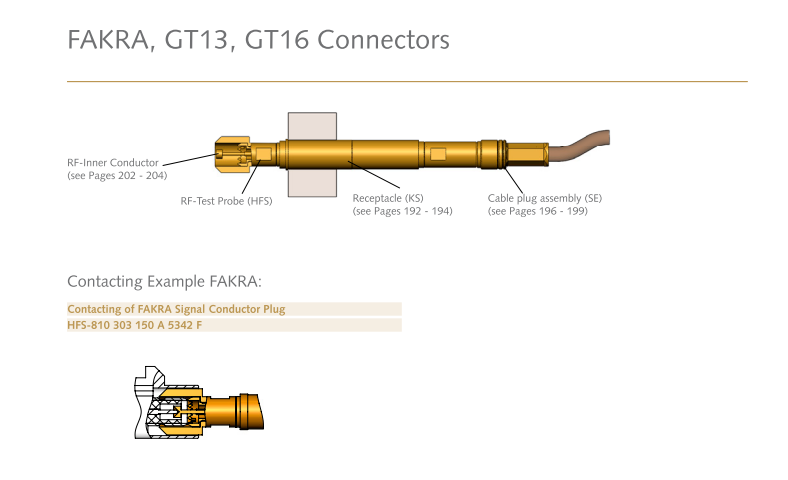

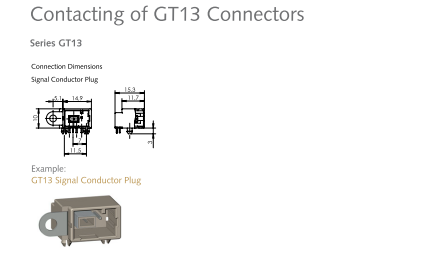

FAKRA, GT13, GT16
FAKRA, GT13, GT16

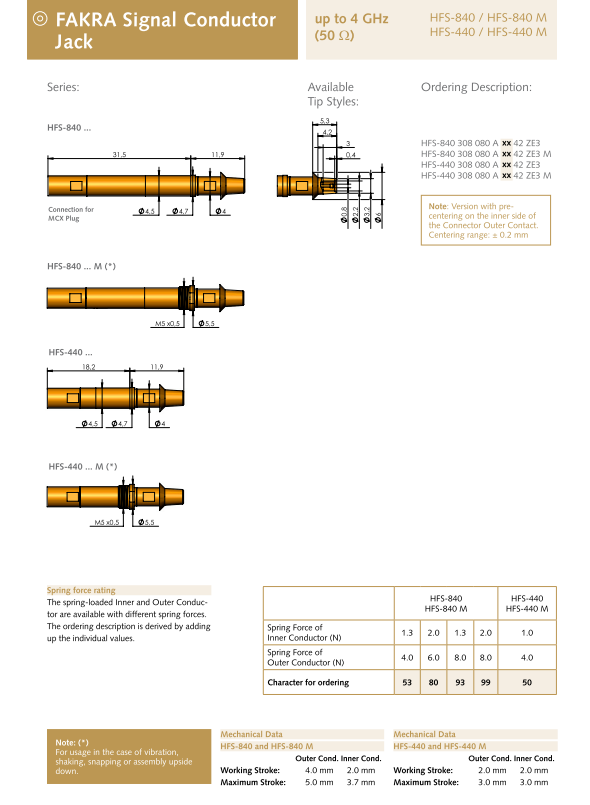

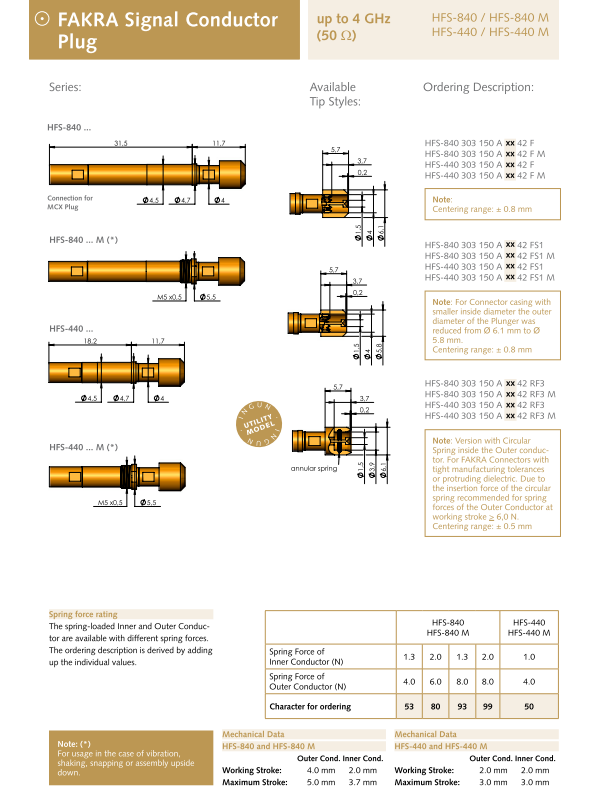

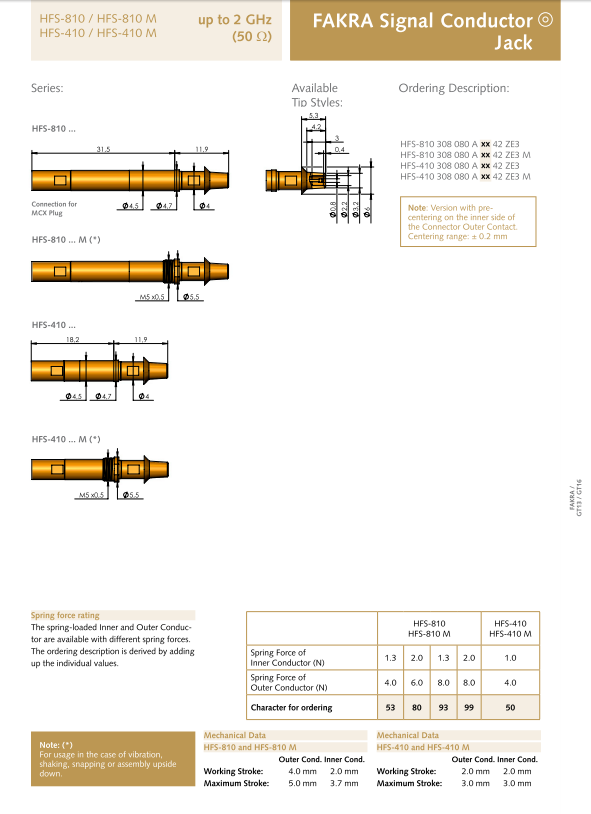

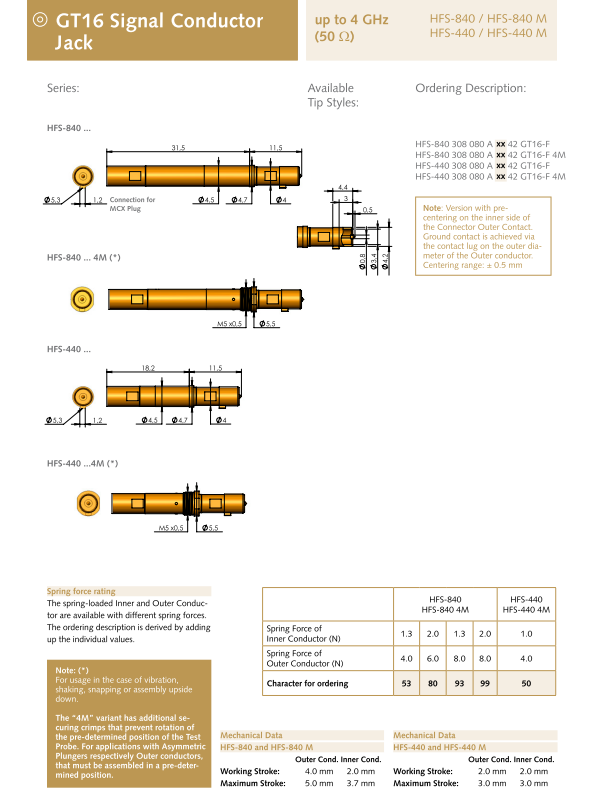

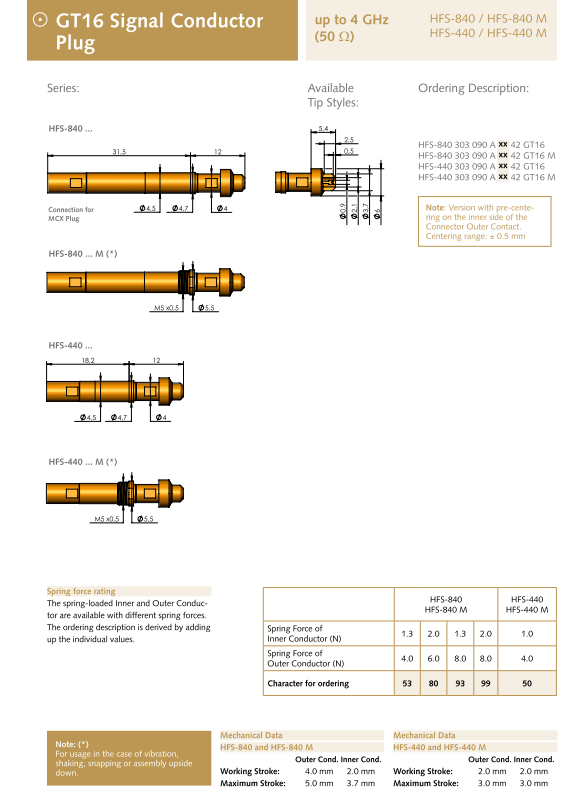

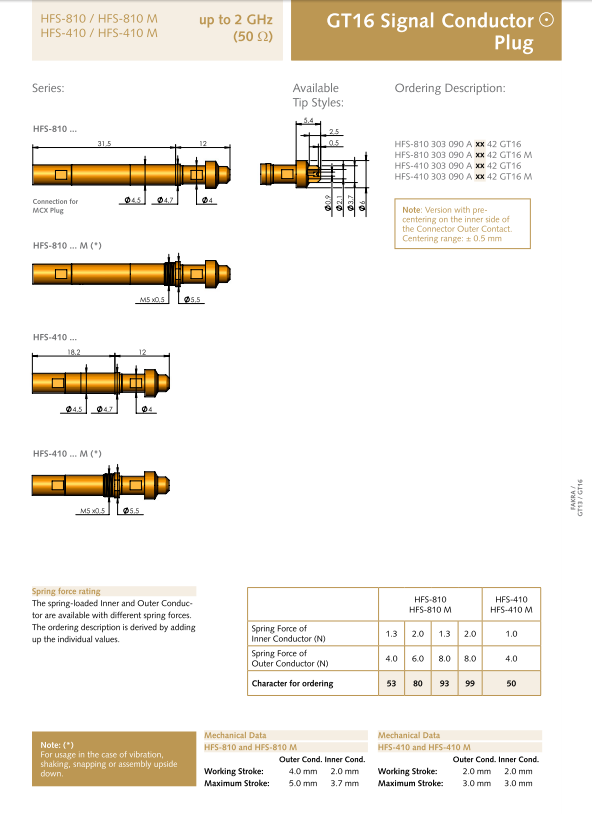

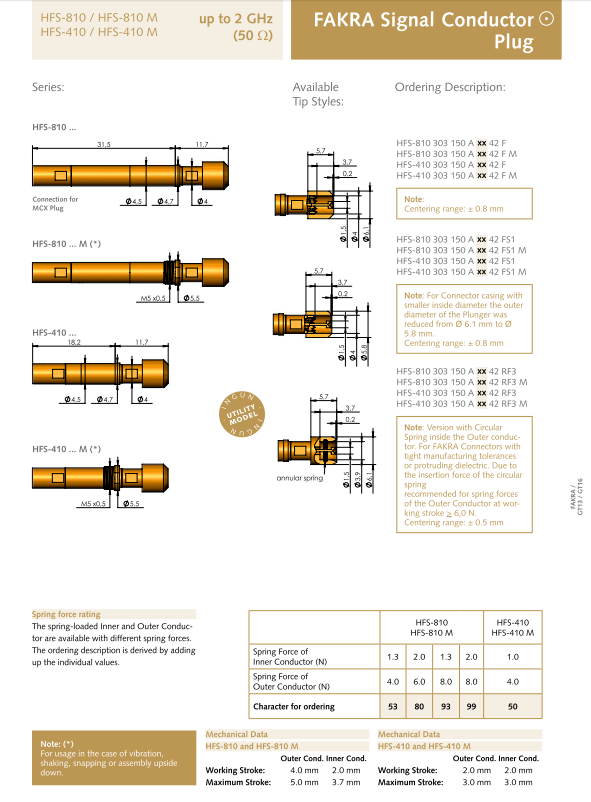

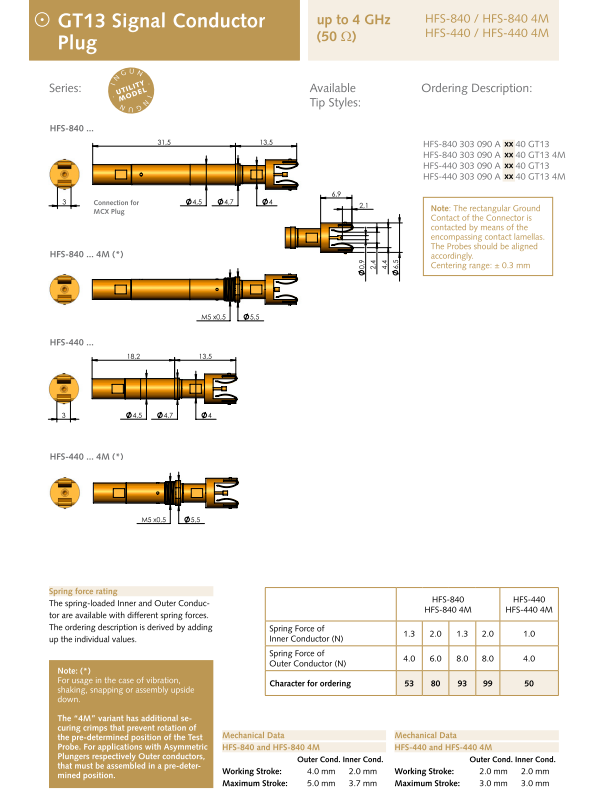

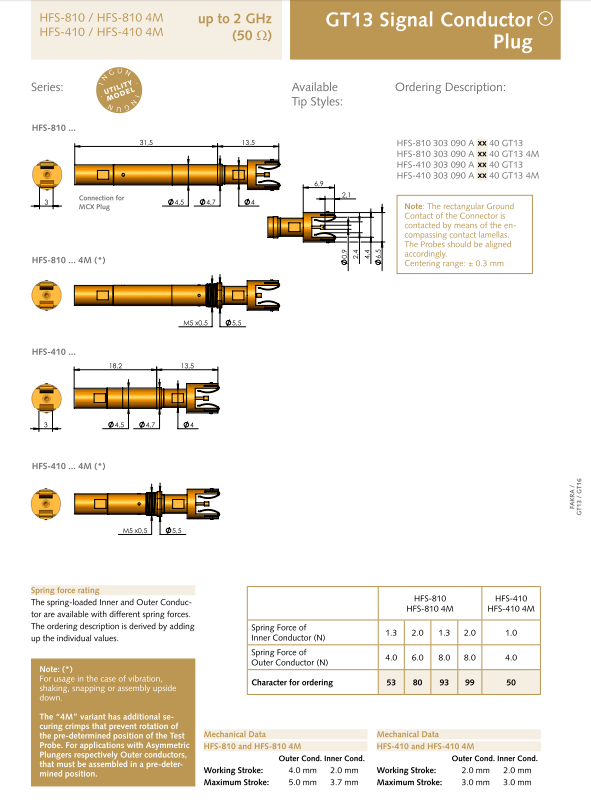

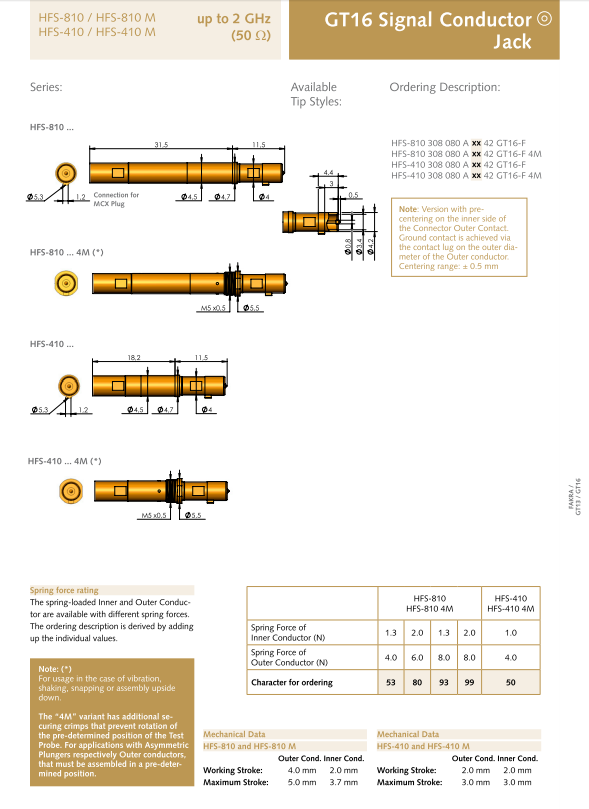

HFS-810/810 M/810 4M HFS-840/840 M/840 4M HFS-410/410 M/410 4M HFS-440/440 M/440 4M
Electrical Data
HFS-810/810 M/810 4M HFS-840/840 M/840 4M
HFS-410/410 M/410 4M HFS-440/440 M/440 4M
Frequency Range with HFS-810/410: up to 2 GHz
Frequency Range with HFS-840/440: up to 4 GHz
Current Rating Outer Conductor: 8–10 A
Current Rating Inner Conductor: 2–3 A
Ri typical Inner Conductor: < 10 mΩ
Impedance Test Probe: 50 Ω
Impedance Cable 50 Ω
