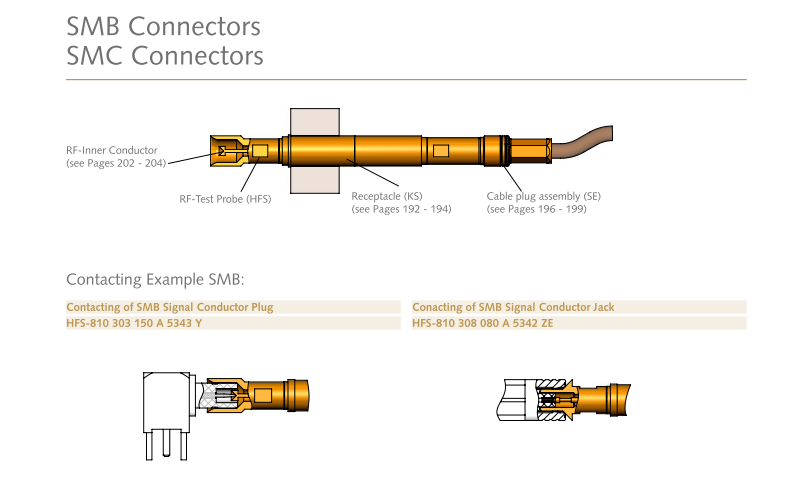

SMB / SMC Connectors

SMB / SMC Connectors

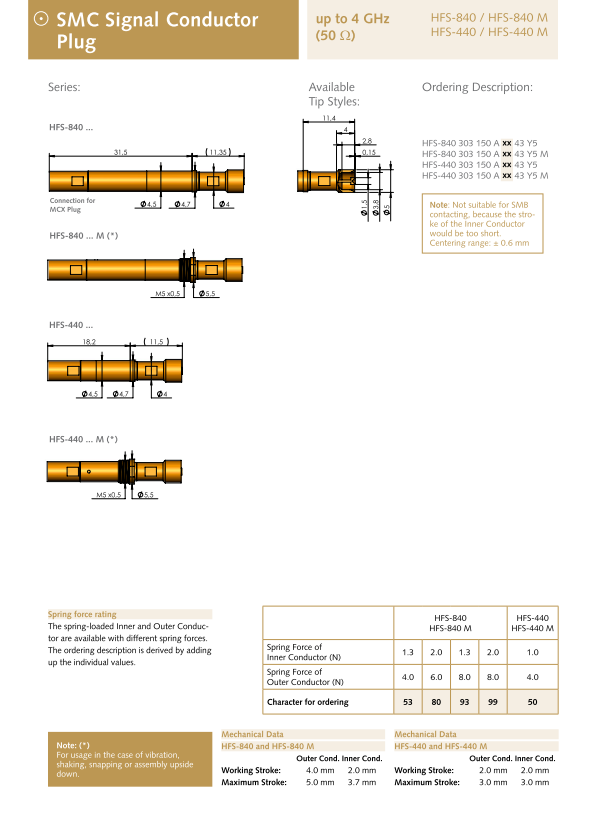

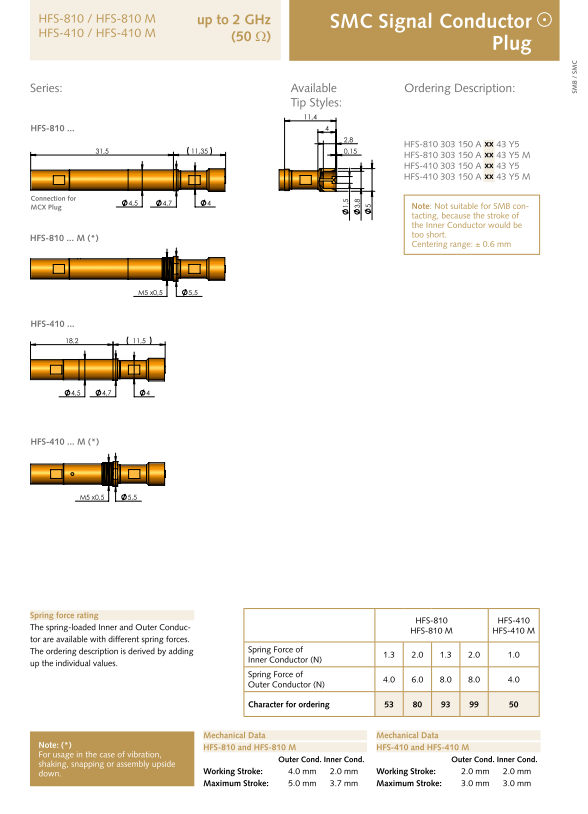

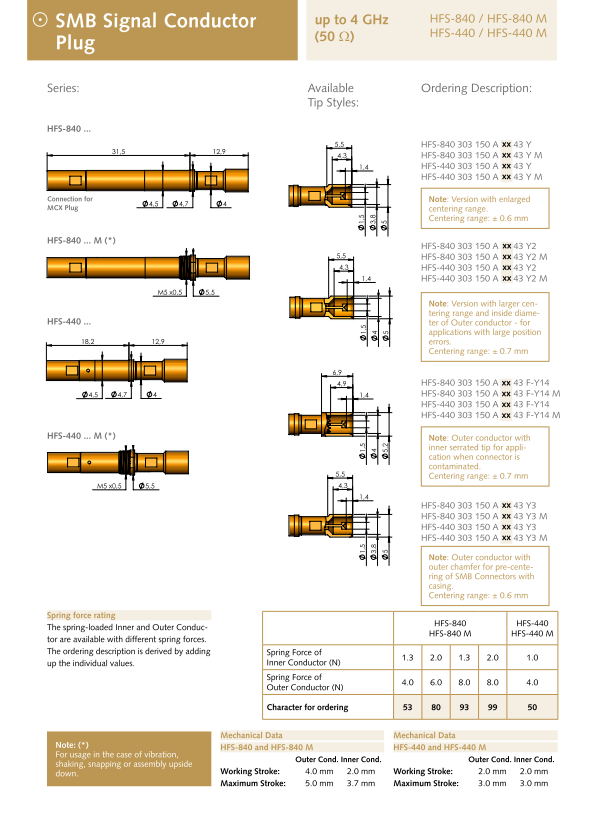

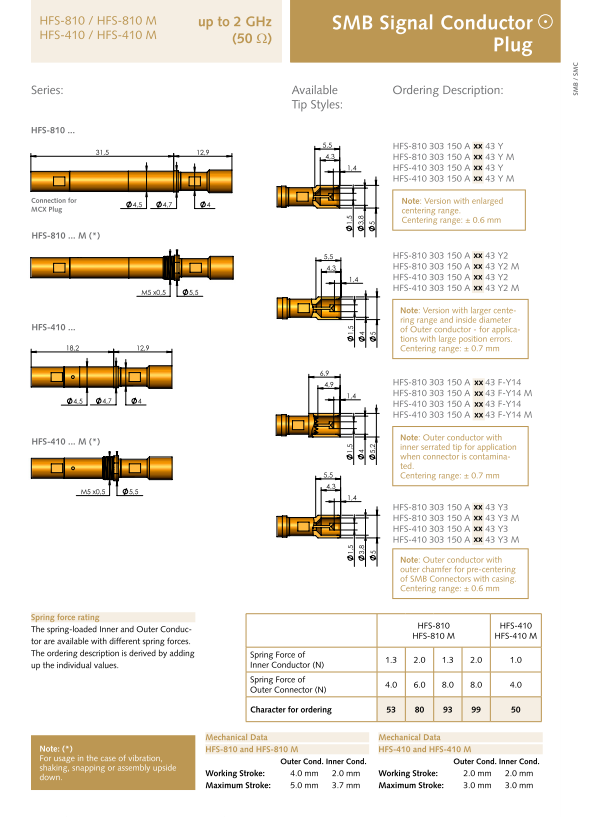

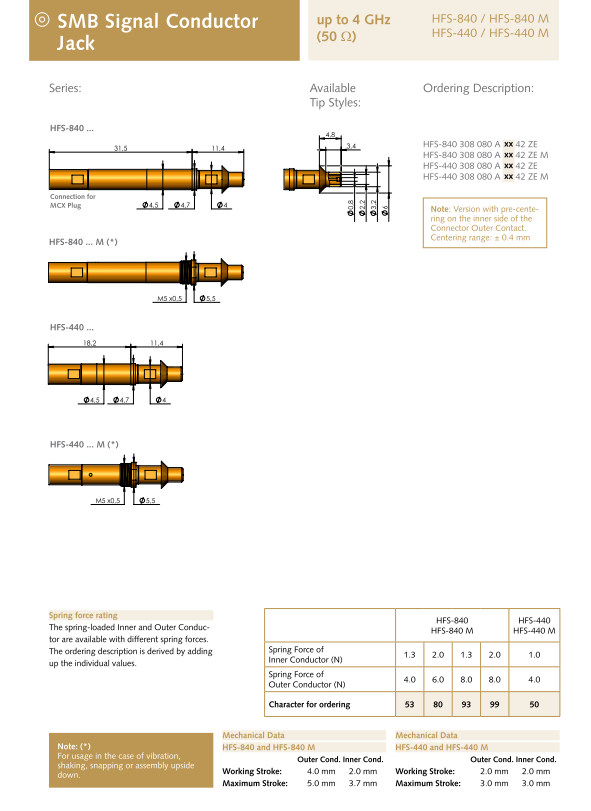

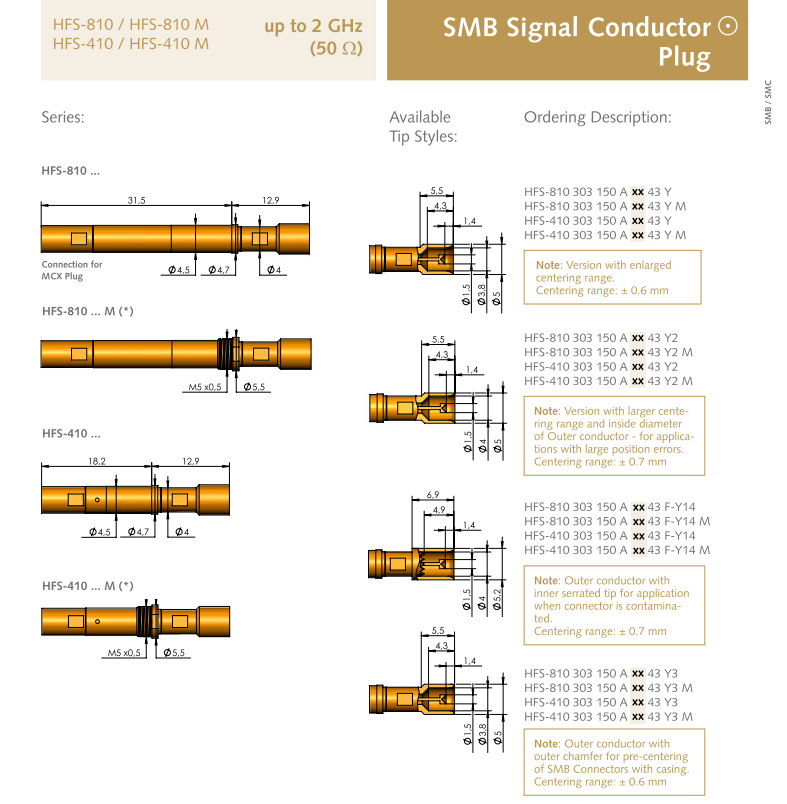

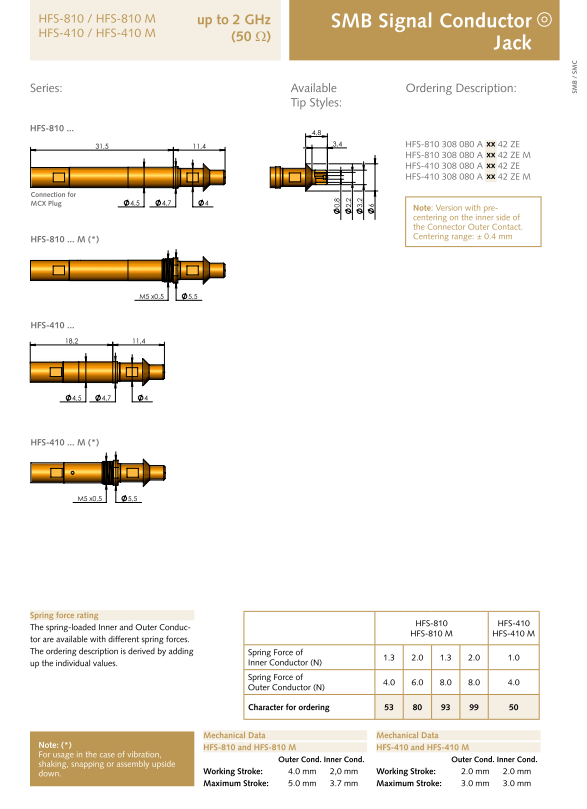

HFS-810 / 810 M HFS-840 / 840 M HFS-410 / 410 M HFS-440 / 440 M

Electrical Data
HFS-810 / 810 M        HFS-840 / 840 M
HFS-410 / 410 M           HFS-440 / 440 M
Frequency Range with HFS-810/410:   upt to 2 GHz
Frequency Range with HFS-840/440:        up to 4 GHz
Current Rating Outer Conductor:  8–10 A
Current Rating Inner Conductor:  2–3 A
Ri typical Inner Conductor:   < 10 mΩ
Impedance Test Probe:    50 Ω
Impedance Cable:   50 Ω










Specification
