Electrical Data

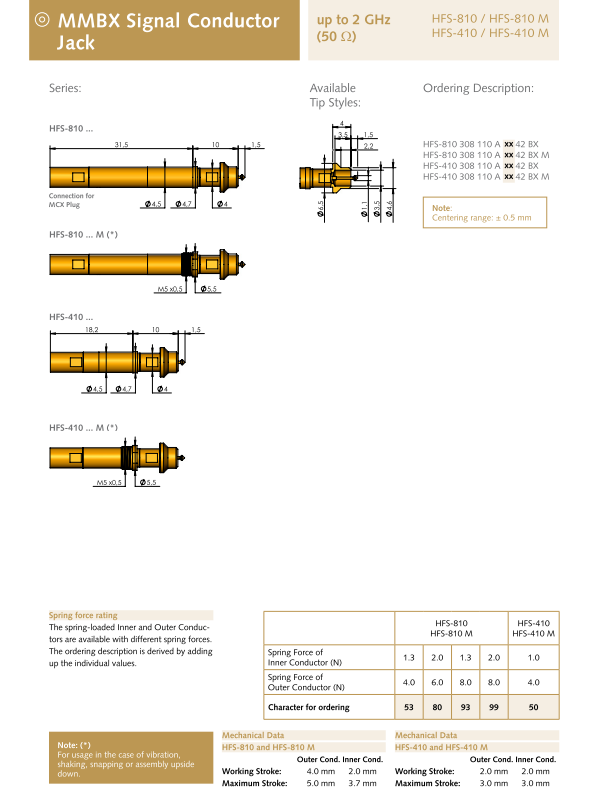

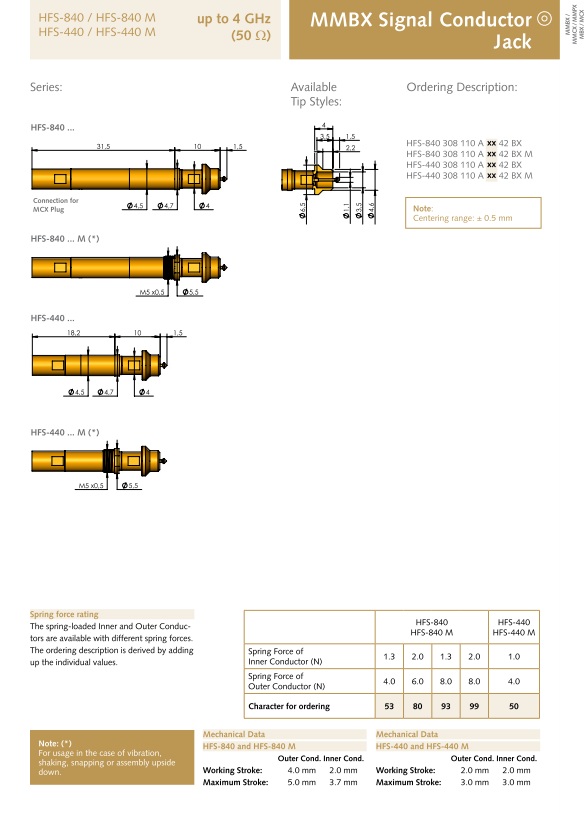

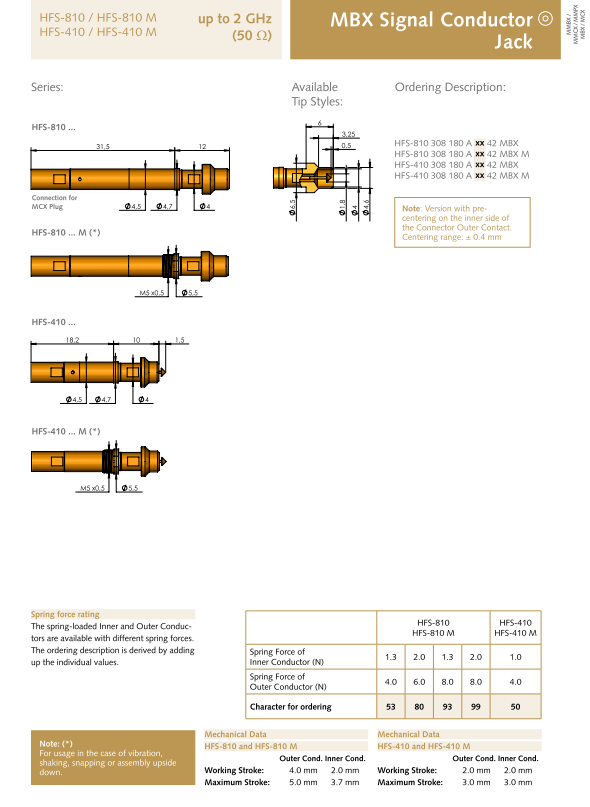

HFS-810 / 810 M      HFS-840 / 840 M
HFS-410 / 410 M      HFS-440 / 440 M

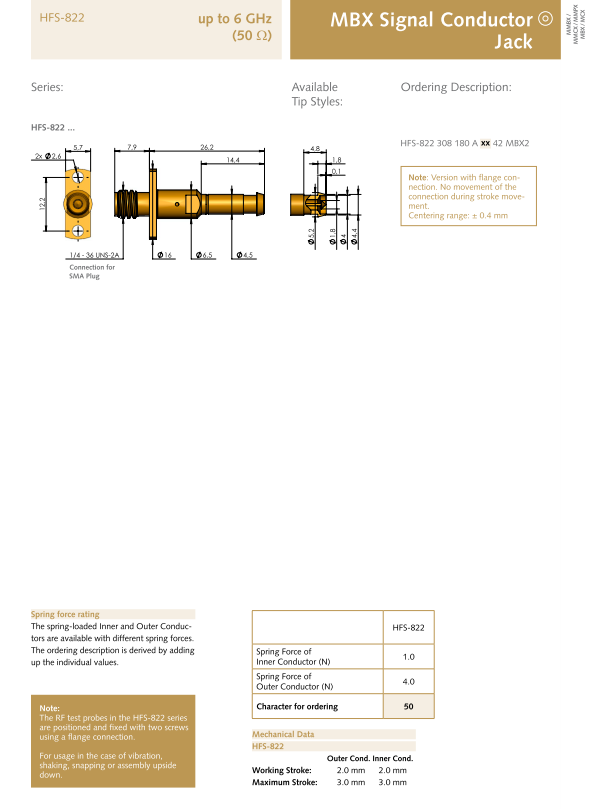

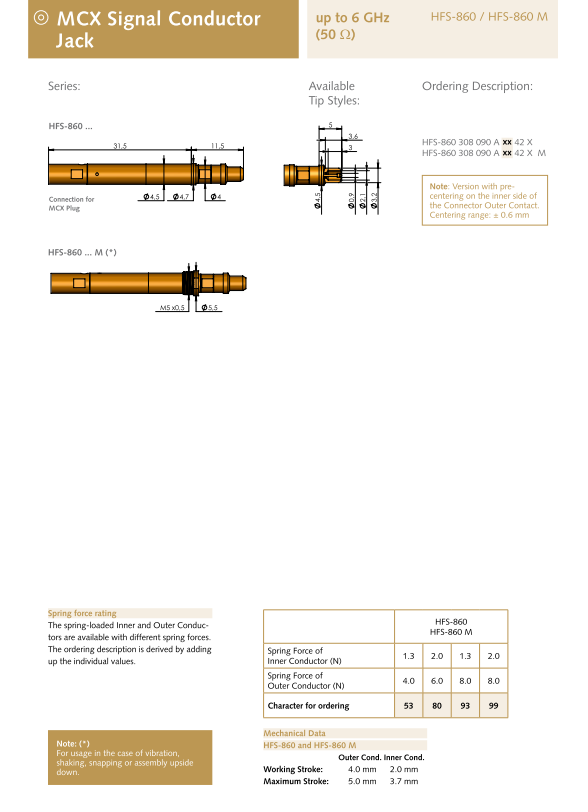

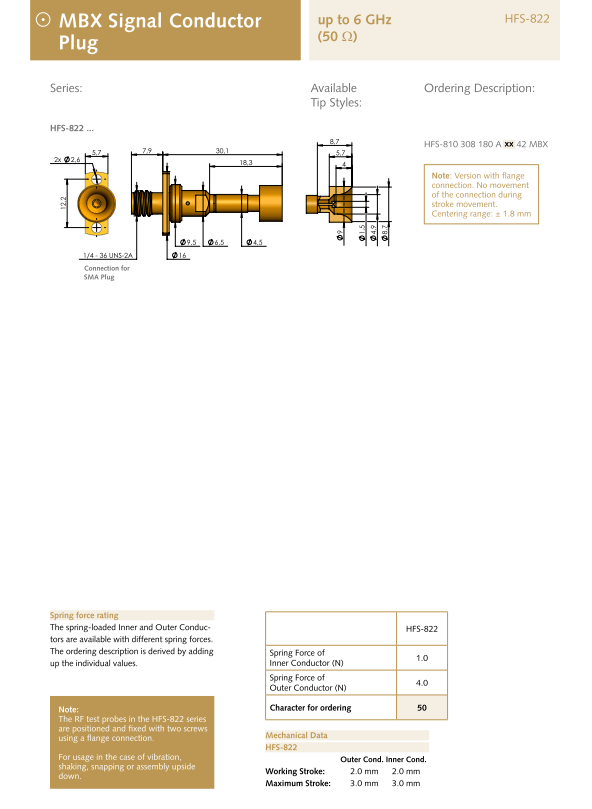

HFS-822                    HFS-860 / 860 M        HFS-865
Frequency Range with HFS-810/410:   up to 2 GHz
Frequency Range with HFS-840/440:        up to 4 GHz
Frequency Range with HFS-860:   up to 6 GHz
Frequency Range with HFS-865:              up to 12 GHz
Current Rating Outer Conductor:  8 –10 A
Current Rating Inner Conductor:  2–3 A
Ri typical Inner Conductor:   < 10 mW
Impedance Test Probe:    50 W
Impedance Cable:   50 W
