Product Name:

FlashRunner 2.0 In-System Programming solutions

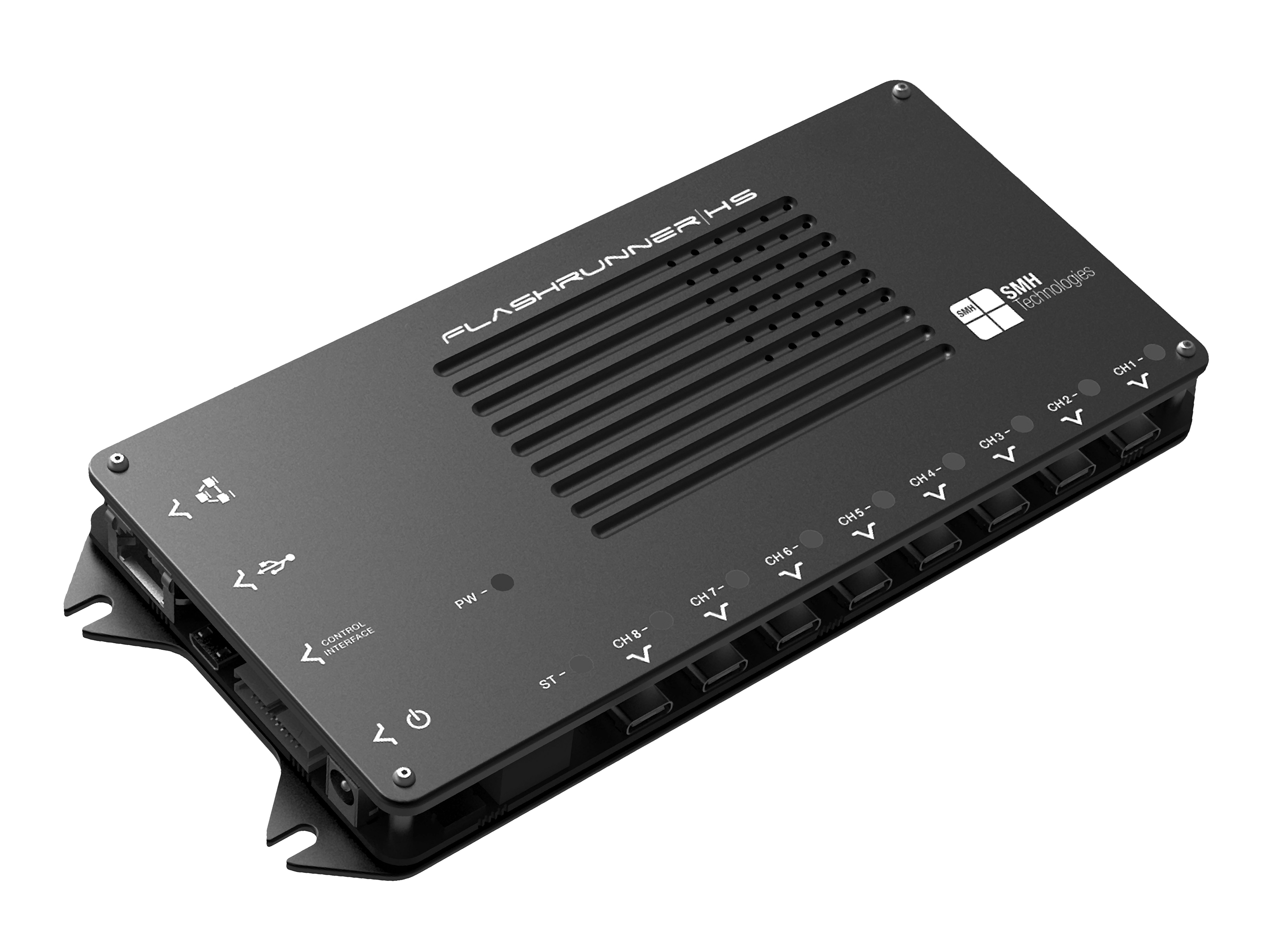

FlashRunner HS: any combination supported

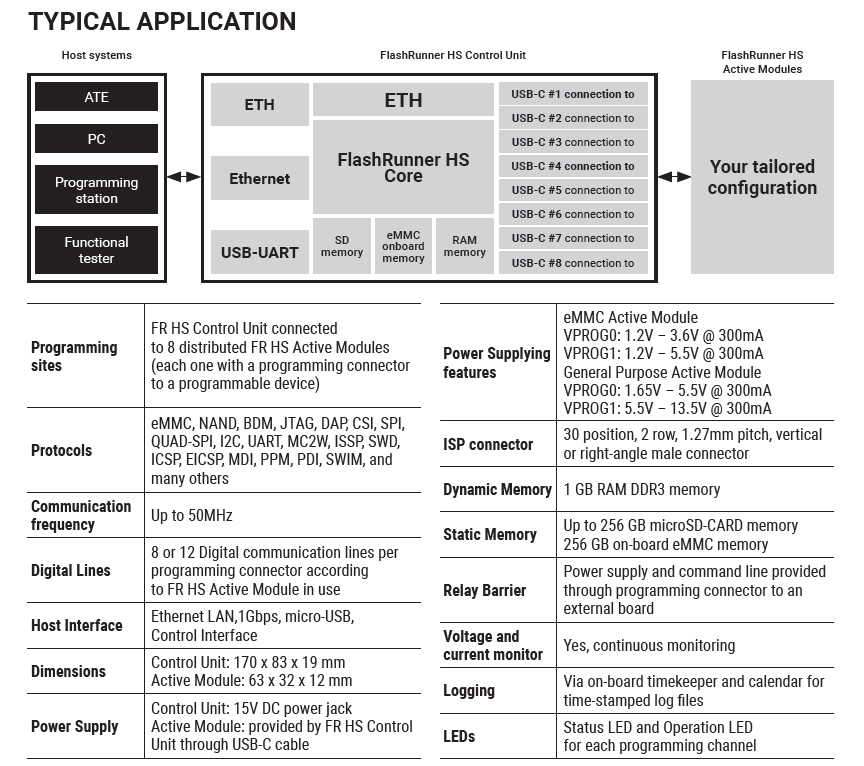

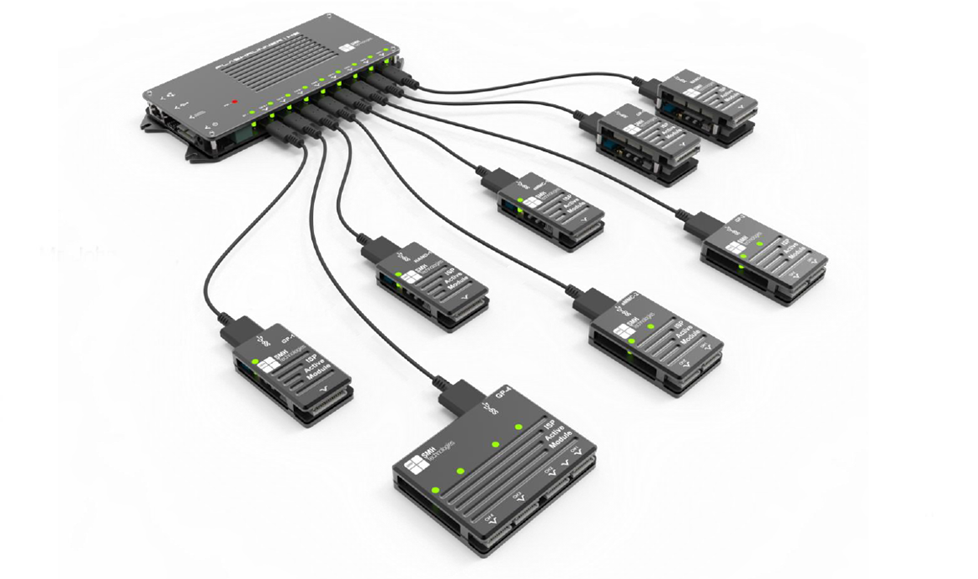

FlashRunner HS setup may be chosen mixing up all Active Module types to support any required combination of devices. The programming system configuration can be easily set into SMH Technologies Workbench GUI software. The overall number of channels supported depends on the type of Active Module connected. For example, if only GP-4 Active Module are employed, FlashRunner HS can support up to 32 target devices in parallel.

FR 2.0 capitalizes SMH Technologies’ experience on production environments developed at the main OEM and EMS plants worldwide. FlashRunner 2.0 series programmers are systems that turn to production efficiency in production areas where are integrated.

FlashRunner 2.0: A Revolutionary In-System Programming Solution

Overview

FlashRunner 2.0, a cutting-edge innovation from SMH Technologies, represents a significant advancement in the field of In-System Programming (ISP). Leveraging its decades of experience, SMH has developed a comprehensive programming system designed to meet the evolving demands of the industry.

Key Features and Benefits

• High-Speed Programming: FlashRunner 2.0 boasts exceptional programming performance, capable of handling large data files at speeds of up to 80MB/s. This high-speed capability ensures efficient and timely programming for various applications.
• Modularity and Flexibility: The system's modular design allows for easy customization and scalability, making it suitable for a wide range of production environments.
• Industry 4.0 Compatibility: FlashRunner 2.0 aligns with the principles of Industry 4.0, featuring a central control unit that coordinates different programming technologies. This smart networking approach enhances efficiency and quality.
• Enhanced Security: Robust security features, including encrypted FRB files, user permission management, and NDA device management, protect against unauthorized access and data breaches.
• User-Friendly Interface: The intuitive graphical user interface (GUI) simplifies the programming process, making it accessible to users of all levels.
• Comprehensive Software Features: FlashRunner 2.0 offers a rich set of software features, such as watchdog feeder, cybersecurity measures, DLL integration, voltage monitoring, serial numbering, and conditional erase, to streamline programming workflows
