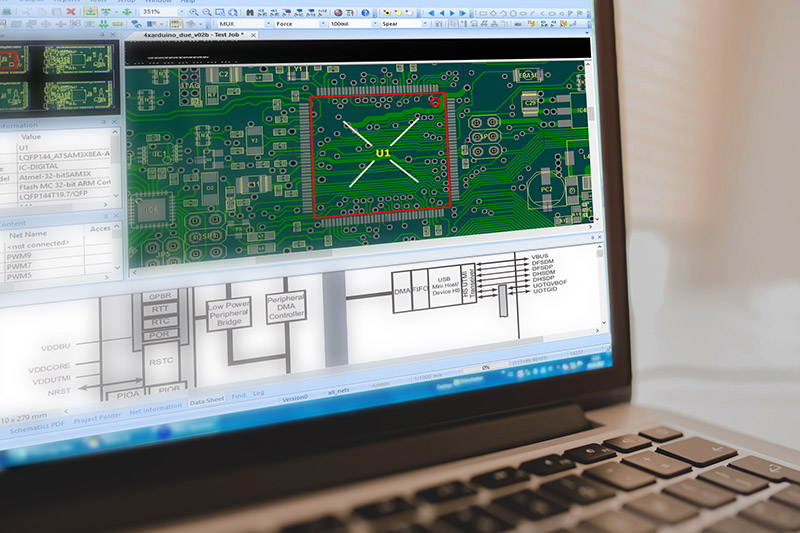

C-LINK DTM takes all major CAD systems and automates the translation of design data to any test in-spection system

CAD/CAM Software

C-LINK DTM is the interface between CAD, test and repair, and combines these into one platform. Our CAD/CAM software has since its introduction in 1985 developed into the leading standard tool. C-LINK supports virtually every test system on the market.

By linking design for testing (DFT) to production, profitability and product quality are increased, test costs reduced, and testing and product introduction times shortened.


Data import

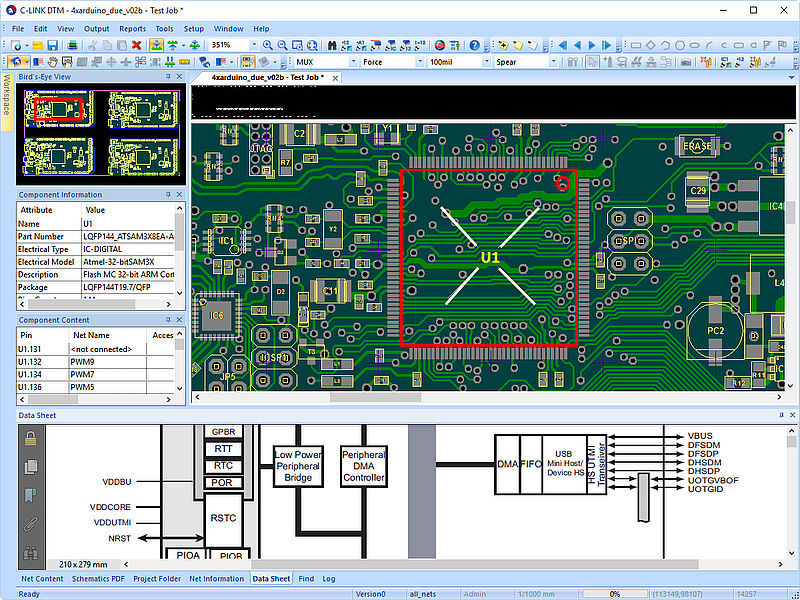

C-­LINK imports all design data for the PCB including: layout, netlist, panel information and bill of materials. Fixture definitions can also be be back annotated into C-­LINK.

Data processing

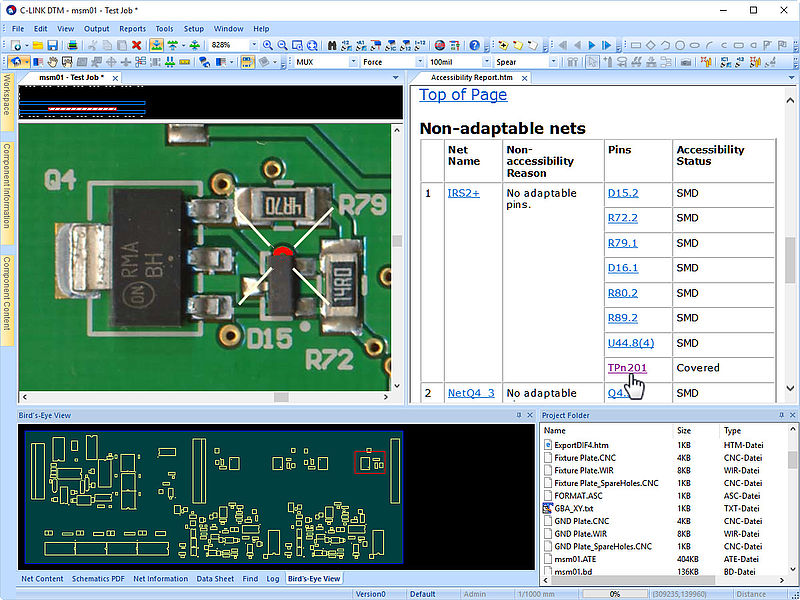

With a full set of tools like version management, DFT checks, automatic pin placement or mechanical fixture design, C-LINK completes the data for test and inspection.

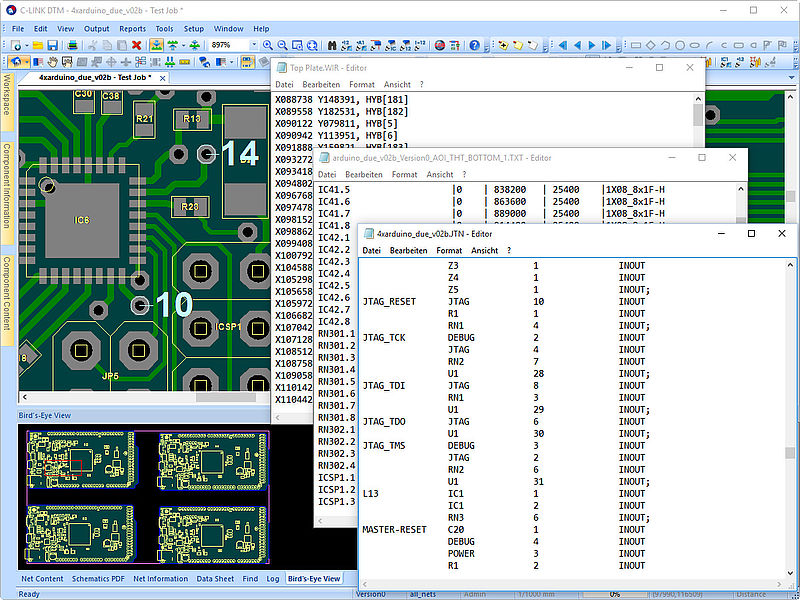

Machine ready outputs for AOI, Boundary Scan, in-circuit and flying probe test plus the flexible generic output processor feed the equipment of the production floor.
